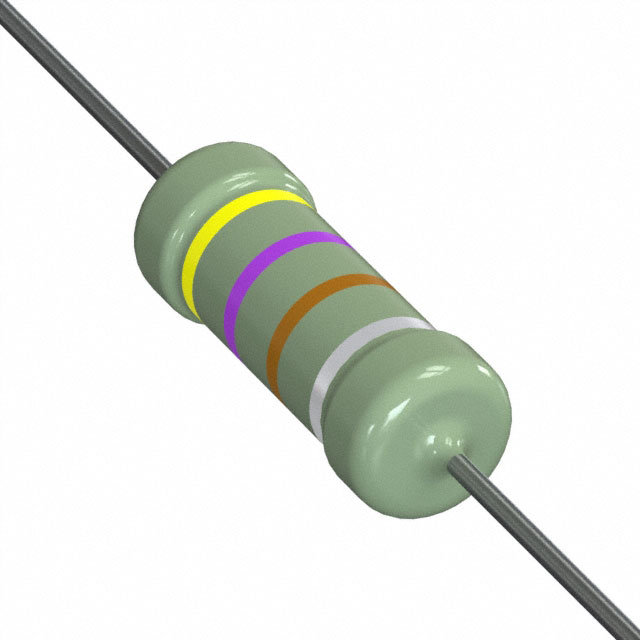

CCR147KKB

Active

TE Connectivity Passive Product

RES 47K OHM 10% 1W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 47K OHM 10% 1W AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Tolerance	Resistance	Number of Terminations	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [z]	Size / Dimension [z]	Composition	Features	Supplier Device Package
TE Connectivity Passive Product CCR122KKTB	Axial	10 %	22 kOhms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR1270RKT	Axial	10 %	270 Ohms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR11K0KTB	Axial	10 %	1000 Ohms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR110KKB	Axial	10 %	10000 Ohms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR147KKB	Axial	10 %	47 kOhms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR122RKTB	Axial	10 %	22 Ohms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial
TE Connectivity Passive Product CCR1470RKT	Axial	10 %	470 Ohms	2	1300 ppm/°C	200 °C	-40 °C	1 W	5.5 mm	0.217 "	16.5 mm	0.65 in	Ceramic	Pulse Withstanding	Axial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 1.23

General part information

47 kOhms ±10% 1W Through Hole Resistor Axial Pulse Withstanding Ceramic

Technical documentation and resources

No documents available
