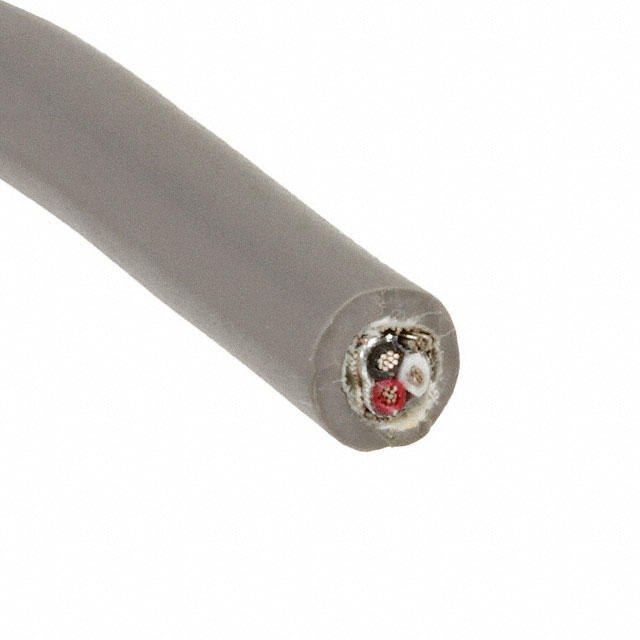

1213C SL001

Active

ALPHA WIRE

CABLE 3COND 24AWG SHLD 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 24AWG SHLD 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1213C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	4.14 mm
Jacket (Insulation) Diameter [diameter]	0.163 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	24 AWG

Part	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Number of Conductors	Conductor Insulation	Wire Gauge	Usage	Features	Shield Coverage	Cable Type	Conductor Material	Shield Type	Length	Length
ALPHA WIRE 1213C SL002	Slate	4.14 mm	0.163 in	32 AWG	7	Poly-Vinyl Chloride (PVC)	Aluminum	500 '	152.4 m	-20 C	80 C	300 V	3	Poly-Vinyl Chloride (PVC)	24 AWG	Communication Control	Drain Wire	100 %	Multi-Conductor	Copper Tinned	Foil
ALPHA WIRE 1213C SL001	Slate	4.14 mm	0.163 in	32 AWG	7	Poly-Vinyl Chloride (PVC)	Aluminum			-20 C	80 C	300 V	3	Poly-Vinyl Chloride (PVC)	24 AWG	Communication Control	Drain Wire	100 %	Multi-Conductor	Copper Tinned	Foil	1000 ft	304.8 m
