Q-0201M0001.25M

Active

Amphenol Custom Cable

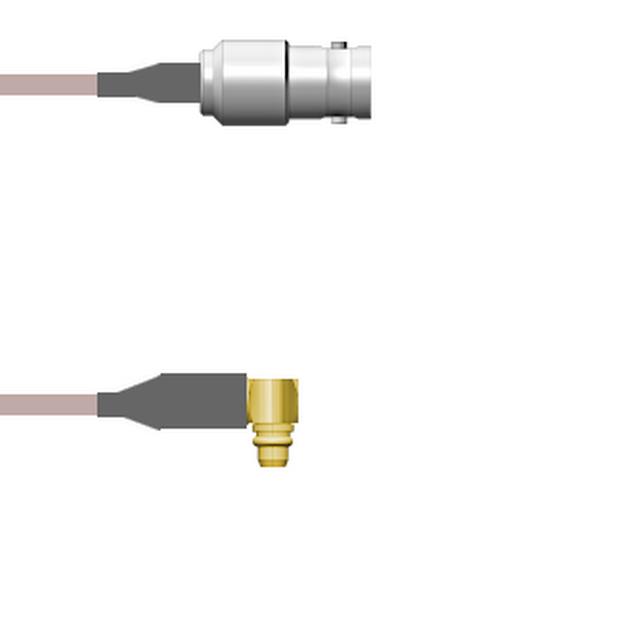

CBL ASSY BNC-MMCX JCK-PLG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0201M0001.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX JCK-PLG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0201M0001.25M

1st Connector	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0201M0 Series

Part	2nd Connector Mounting Type	Style	1st Connector Mounting Type	Color	2nd Connector	Features	1st Contact Gender	Length	Length	Length	2nd Contact Gender	Cable Type	Frequency - Max [Max]	1st Connector	Overall Impedance	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-0201M0001048i	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	1200 mm	4 ft	48 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001072i	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	1.8 m	6 ft	72 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001.75M	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	750 mm		29.53 "	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001002M	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	2 m	6.6 ft	78.7 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001036i	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	91.44 cm		36 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001.25M	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female				Male	RG-178	4 GHz	BNC Jack	50 Ohms	9.843 "	250 mm
Amphenol Custom Cable Q-0201M0001018i	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female				Male	RG-178	4 GHz	BNC Jack	50 Ohms		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0201M0001003M	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	3 m	9.8 '	118.1 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M00010.5M	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	50 cm		19.69 "	Male	RG-178	4 GHz	BNC Jack	50 Ohms
Amphenol Custom Cable Q-0201M0001108i	Free Hanging (In-Line)	BNC to MMCX	Free Hanging (In-Line)	Copper	MMCX Plug Right Angle	Shielded	Female	2.7 m	9 ft	108 in	Male	RG-178	4 GHz	BNC Jack	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 77.74
		25	$ 76.21
		50	$ 74.69
		100	$ 73.17
		250	$ 71.65

Description

General part information

Q-0201M0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
