RCLAMP0524T.TCT

Obsolete

Semtech Corporation

TVS DIODE 5VWM 15VC SLP2510P8T

Search across all available documentation for this part.

Obsolete

Semtech Corporation

TVS DIODE 5VWM 15VC SLP2510P8T

Technical Specifications

Parameters and characteristics for this part

Specification	RCLAMP0524T.TCT

Applications	HDMI
Capacitance @ Frequency	0.8 pF
Current - Peak Pulse (10/1000µs)	5 A
Mounting Type	Surface Mount
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-55 °C

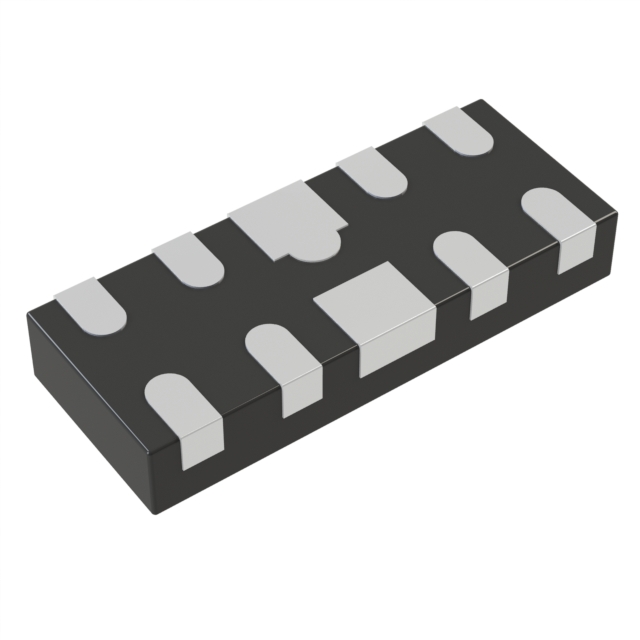

Package / Case	10-XFDFN
Power - Peak Pulse	150 W
Power Line Protection	True
Supplier Device Package	SLP2510P8T
Type	Steering
Unidirectional Channels [custom]	4
Voltage - Breakdown (Min) [Min]	6 V
Voltage - Clamping (Max) @ Ipp [Max]	15 V
Voltage - Reverse Standoff (Typ)	5 V

Part	Unidirectional Channels [custom]	Package / Case	Capacitance @ Frequency	Power Line Protection	Type	Mounting Type	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Reverse Standoff (Typ)	Supplier Device Package	Voltage - Breakdown (Min) [Min]	Current - Peak Pulse (10/1000µs)
Semtech Corporation RCLAMP0524T.TCT	4	10-XFDFN	0.8 pF		Steering	Surface Mount	HDMI	15 V	150 W	125 ¯C	-55 °C	5 V	SLP2510P8T	6 V	5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

15V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP2510P8T

Technical documentation and resources

No documents available
