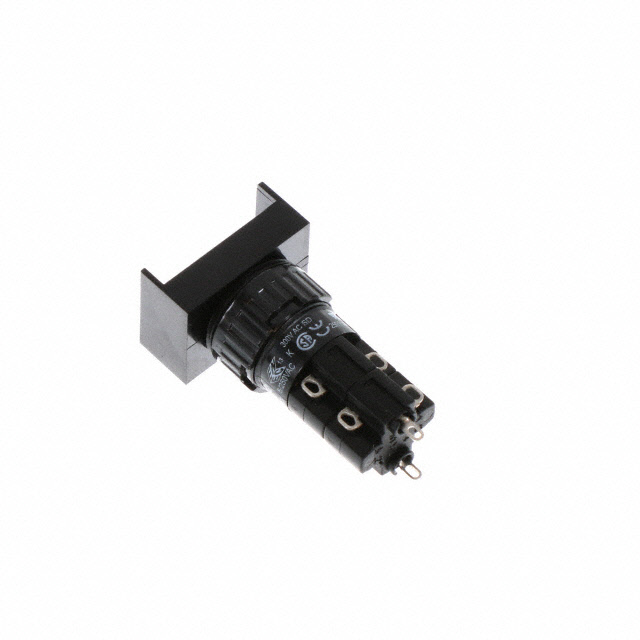

51-262.025

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH PB DPST-NO/NC 5A 250V

Technical Specifications

Parameters and characteristics for this part

Specification	51-262.025

Actuator Marking	No Marking
Actuator Type	Rectangular, Button (Not Included)
Circuit	4PST-2NO/2NC
Current Rating (Amps)	5 A
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Off, Off-On
Termination Style	Solder Lug
Type	Standard
Voltage Rating - AC	250 V

Part	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Mechanical Life	Switch Function	Actuator Type	Current Rating (Amps)	Actuator Marking	Circuit
EAO 51-262.025	16 mm	250 V	Standard	Solder Lug	55 °C	-25 °C	Panel Mount Front	IP65 - Dust Tight Water Resistant	1000000 Cycles	Off-On On-Off	Rectangular Button (Not Included)	5 A	No Marking	4PST-2NO/2NC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch 4PST-2NO/2NC Standard Panel Mount, Front
