3210-16-001-12-00

Active

CnC Tech, LLC

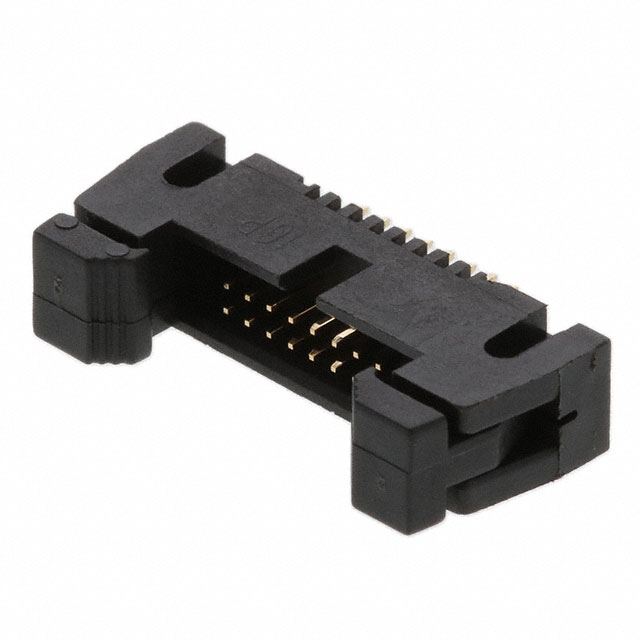

CONN EJECTOR HEADER HDR 16 POS 1.27MM SOLDER ST THRU-HOLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3210-xx-001-12-00 Drawing PRIOR TO 20/06 +1

3210-16-001-12-00

Active

CnC Tech, LLC

CONN EJECTOR HEADER HDR 16 POS 1.27MM SOLDER ST THRU-HOLE

Deep-Dive with AI

DocumentsDatasheet 3210-xx-001-12-00 Drawing PRIOR TO 20/06 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3210-16-001-12-00

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.094 in
Contact Length - Post	2.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Short
Insulation Material	Polyamide (PA6T), Nylon 6T, Polyamide (PA9T), Nylon 9T
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

3210-16 Series

Part	Contact Type	Material Flammability Rating	Contact Finish Thickness - Mating	Number of Rows	Fastening Type	Shrouding	Connector Type	Contact Shape	Number of Positions	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Features	Termination	Insulation Material	Style	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
CnC Tech, LLC 3210-16-003-12-00	Male Pin	UL94 V-0	Flash	2	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	Header	Square	16	Surface Mount	-40 °C	105 ░C	Brass	Keying Slot	Solder	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Board to Cable/Wire	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	All
CnC Tech, LLC 3210-16-001-12-00	Male Pin	UL94 V-0	Flash	2	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	Header	Square	16	Through Hole	-40 °C	105 ░C	Brass		Solder	Polyamide (PA6T) Nylon 6T Polyamide (PA9T) Nylon 9T	Board to Cable/Wire	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	All	0.094 in	2.4 mm
CnC Tech, LLC 3210-16-002-12-00	Male Pin	UL94 V-0	Flash	2	Latch Lock/Eject Hooks Short	Shrouded - 4 Wall	Header	Square	16	Through Hole Right Angle	-40 °C	105 ░C	Brass		Solder	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	0.05 in	1.27 mm	0.05 in	1.27 mm	Gold	All	0.094 in	2.4 mm	5.6 mm	0.22 in
CnC Tech, LLC 3210-16-002-11-99	Male Pin	UL94 V-0		2	Push-Pull	Shrouded - 2 Wall	Header	Square	16	Through Hole Right Angle	-40 °C	105 ░C	Brass		Solder	Polybutylene Terephthalate (PBT)	Board to Cable/Wire	0.05 in	1.27 mm	0.05 in	1.27 mm		All	0.094 in	2.4 mm	5.6 mm	0.22 in	2.03 µm	80 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.12
		10	$ 0.12
		100	$ 0.12
		500	$ 0.12
Digikey	Tray	1	$ 0.98
		10	$ 0.83
		80	$ 0.75
		440	$ 0.61
		1980	$ 0.60
LCSC	Piece	1	$ 1.82
		264	$ 0.73
		528	$ 0.70
		1056	$ 0.69

Description

General part information

3210-16 Series

Connector Header Through Hole 16 position 0.050" (1.27mm)

Documents

Technical documentation and resources

Datasheet

3210-xx-001-12-00 Drawing PRIOR TO 20/06

Datasheet

IDC Header Mating Guide

Datasheet
