44MS30-03-6-02N

Active

Grayhill Inc.

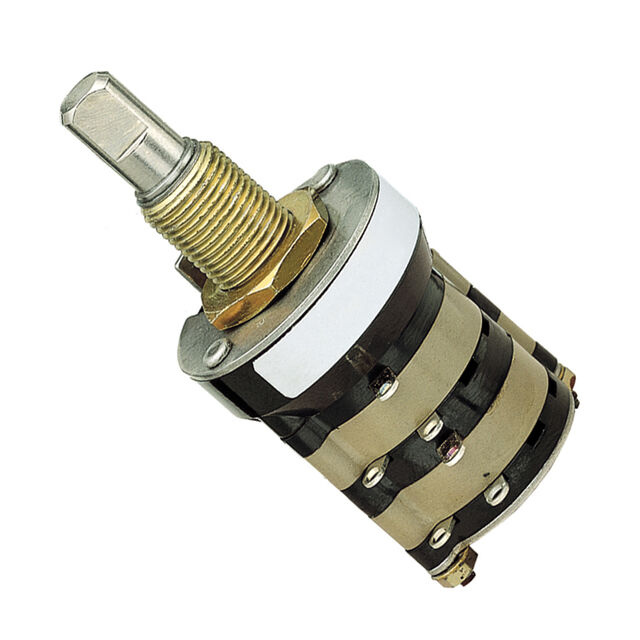

SWITCH ROTARY 2POS 1A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

44MS30-03-6-02N

Active

Grayhill Inc.

SWITCH ROTARY 2POS 1A 115V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	44MS30-03-6-02N

Actuator Length [x]	11.1 mm
Actuator Type	Flatted
Actuator Type [diameter]	6.35 mm
Angle of Throw	30 °
Circuit per Deck	6PDT
Contact Material	Silver Alloy
Contact Timing	Non-Shorting
Depth Behind Panel [z]	43.61 mm
Features	Shaft and Panel Sealed
Index Stops	Fixed
Number of Decks	3
Number of Poles per Deck	6
Number of Positions	2
Termination Style	Solder Lug
Voltage Rating - AC	115 V
Voltage Rating - DC	28 V

44MS30 Series

Part	Number of Decks [custom]	Actuator Type [diameter]	Actuator Type	Circuit per Deck	Actuator Length [x]	Number of Positions	Contact Timing	Contact Material	Voltage Rating - DC	Features	Termination Style	Index Stops	Voltage Rating - AC	Angle of Throw	Depth Behind Panel [z]	Number of Poles per Deck	Number of Decks	Circuit per Deck [custom]
Grayhill Inc. 44MS30-01-1-04N	1	6.35 mm	Flatted	SP4T	11.1 mm	4	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	26.04 mm	1
Grayhill Inc. 44MS30-01-3-03N	1	6.35 mm	Flatted	3P3T	11.1 mm		Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	26.04 mm	3
Grayhill Inc. 44MS30-04-4-03N		6.35 mm	Flatted		11.1 mm		Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °			4	4P3T
Grayhill Inc. 44MS30-01-2-04N	1	6.35 mm	Flatted	DP4T	11.1 mm	4	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	26.04 mm	2
Grayhill Inc. 44MS30-03-1-04N		6.35 mm	Flatted	SP4T	11.1 mm	4	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	43.61 mm	1	3
Grayhill Inc. 44MS30-05-4-03N		6.35 mm	Flatted		11.1 mm		Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	61.19 mm		5	4P3T
Grayhill Inc. 44MS30-01-1-05N	1	6.35 mm	Flatted	SP5T	11.1 mm		Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	26.04 mm	1
Grayhill Inc. 44MS30-06-3-02N		6.35 mm	Flatted		11.1 mm	2	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	76.33 mm	3	6
Grayhill Inc. 44MS30-02-1-10N		6.35 mm	Flatted	SP10T	11.1 mm	10	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	34.82 mm	1	2
Grayhill Inc. 44MS30-03-6-02N		6.35 mm	Flatted	6PDT	11.1 mm	2	Non-Shorting	Silver Alloy	28 V	Shaft and Panel Sealed	Solder Lug	Fixed	115 V	30 °	43.61 mm	6	3

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 163.43

Description

General part information

44MS30 Series

Rotary Switch 2 Position 6PDT 1A (AC/DC) 115 VAC Panel Mount
