ADT-2687-TF-SMM-02
ActiveCinch Connectivity Solutions Midwest Microwave

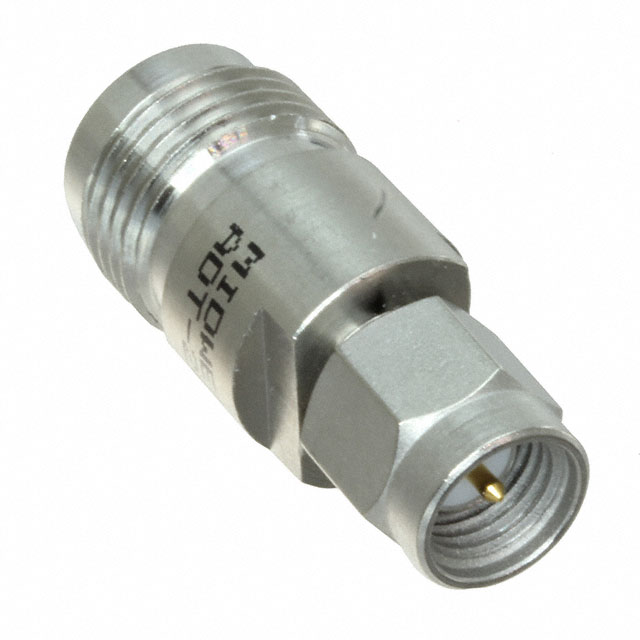

CONN ADAPT TNC JACK TO SMA PLUG
Deep-Dive with AI
Search across all available documentation for this part.
ADT-2687-TF-SMM-02
ActiveCinch Connectivity Solutions Midwest Microwave
CONN ADAPT TNC JACK TO SMA PLUG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ADT-2687-TF-SMM-02 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Conversion Type | Between Series |
| Convert From (Adapter End) | TNC Jack, Female Socket |
| Convert To (Adapter End) | SMA Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 91.49 | |
| 10 | $ 77.77 | |||
| 25 | $ 72.91 | |||
| 50 | $ 69.43 | |||
| 100 | $ 66.12 | |||
Description
General part information
ADT-2687 Series
Adapter Coaxial Connector TNC Jack, Female Socket To SMA Plug, Male Pin 50 Ohms
Documents
Technical documentation and resources
No documents available
