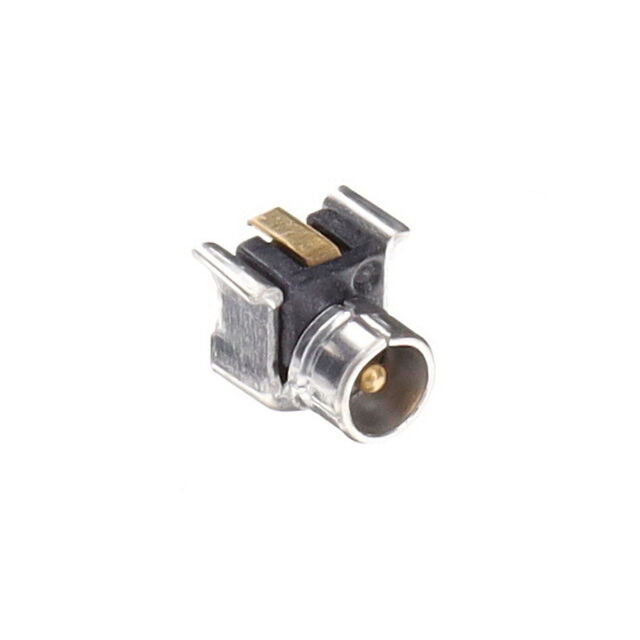

E.FL-LR-SMT(01)
ActiveHirose Electric USA, Inc.
CONN E.FL RCPT SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E.FL-LR-SMT(01)
ActiveHirose Electric USA, Inc.
CONN E.FL RCPT SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E.FL-LR-SMT(01) |
|---|---|
| Body Finish | Silver |
| Body Material | Phosphor Bronze |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | E.FL |
| Connector Type | Male Pin, Receptacle |
| Contact Termination | Solder |
| Dielectric Material | Liquid Crystal Polymer (LCP) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 2 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 50 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Shield Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.17 | |
| 10 | $ 2.42 | |||
| 25 | $ 2.18 | |||
| 50 | $ 2.02 | |||
| 100 | $ 1.87 | |||
| 250 | $ 1.70 | |||
| 500 | $ 1.58 | |||
| 1000 | $ 1.47 | |||
| 2500 | $ 1.34 | |||
Description
General part information
E.FL-LR Series
E.FL Connector Receptacle, Male Pin 50 Ohms Surface Mount, Right Angle Solder
