RJSAE508202

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet RJSGE Series Datasheet

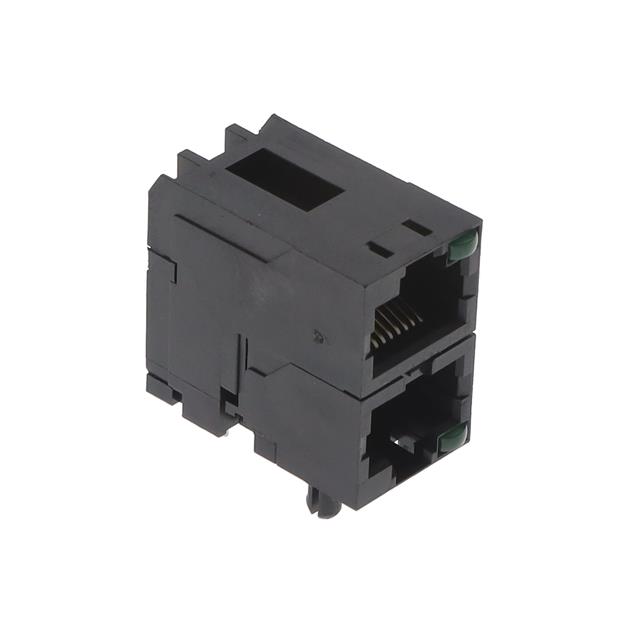

RJSAE508202

Active

Amphenol ICC (Commercial Products)

CONN MOD JACK 8P8C R/A UNSHLD

Deep-Dive with AI

DocumentsDatasheet RJSGE Series Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJSAE508202

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Thermoplastic
LED Color	Green
Mounting Type	Through Hole
Number of Ports	2
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	90 °
Shielding	Unshielded
Tab Direction	Up and Down
Termination	Solder

RJSAE508 Series

Part	Termination	Orientation	LED Color	Contact Finish	Tab Direction	Connector Type	Shielding	Contact Finish Thickness	Contact Finish Thickness	Number of Ports	Number of Positions/Contacts	Contact Material	Housing Material	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol ICC (Commercial Products) RJSAE508B08	Solder	90 °	Red Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	8	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508208	Solder	90 °	Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	8	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508604	Solder	90 °	Yellow - Yellow	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	4	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508108	Solder	90 °	Yellow - Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	8	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508104	Solder	90 °	Yellow - Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	4	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508202	Solder	90 °	Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	2	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508804	Solder	90 °	Green Red	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	4	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C
Amphenol ICC (Commercial Products) RJSAE508B02	Solder	90 °	Red Green	Gold	Up and Down	Jack	Unshielded	50 µin	1.27 µm	2	8p8c (RJ45 Ethernet)	Phosphor Bronze	Thermoplastic	2	Through Hole	85 °C	-55 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.30
		10	$ 4.06
		25	$ 3.66
		40	$ 3.47
		80	$ 3.22
		230	$ 2.88
		440	$ 2.70
		945	$ 2.63

Description

General part information

RJSAE508 Series

Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Unshielded

Documents

Technical documentation and resources

Datasheet

RJSGE Series Datasheet

Datasheet
