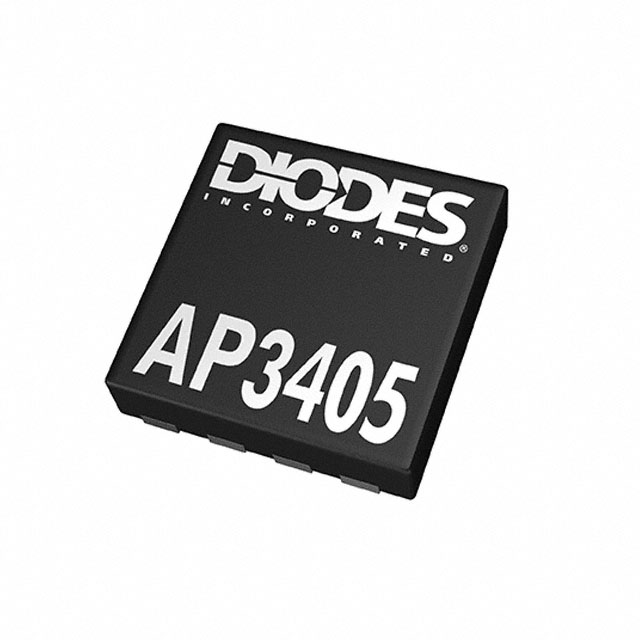

AP3405SHE-7
Obsolete600MA STEP-DOWN DC/DC CONVERTER WITH SYNCHRONOUS RECTIFIER
Deep-Dive with AI
Search across all available documentation for this part.
AP3405SHE-7
Obsolete600MA STEP-DOWN DC/DC CONVERTER WITH SYNCHRONOUS RECTIFIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AP3405SHE-7 |
|---|---|
| Current - Output | 600 mA |
| Frequency - Switching | 2 MHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | U-DFN2020-8 (Type E) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.3 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AP3405 Series
The AP3405 is a 2.0MHz fixed frequency, current mode, PWM synchronous buck (step-down) DC-DC converter, capable of driving a 600mA load with high efficiency, excellent line and load regulation. The high efficiency is easily configured by using an inductor, resistors and capacitors as the external components. Current mode control provides fast transient response and cycle-by-cycle current limit.
