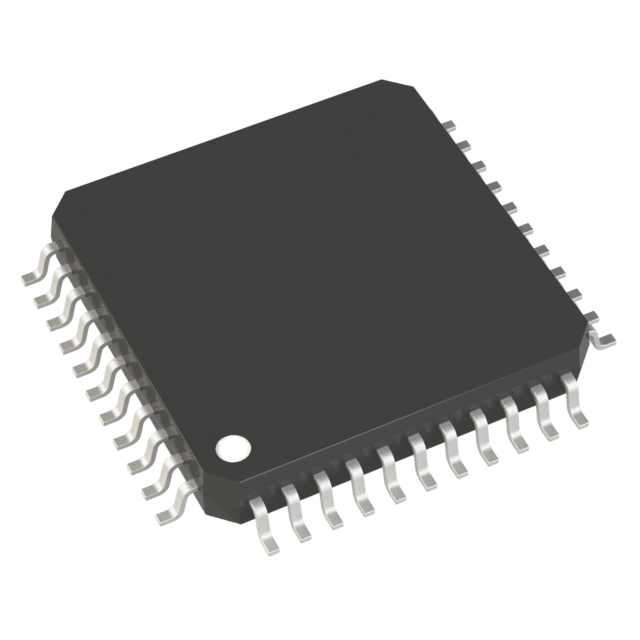

UPD78F0887AGKA-GAJ-G

Obsolete

Renesas Electronics Corporation

8-BIT MICROCONTROLLERS (NON PROMOTION)

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 78K0/Fx2 User's Manual

UPD78F0887AGKA-GAJ-G

Obsolete

Renesas Electronics Corporation

8-BIT MICROCONTROLLERS (NON PROMOTION)

Deep-Dive with AI

DocumentsDatasheet 78K0/Fx2 User's Manual

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UPD78F0887AGKA-GAJ-G

Connectivity	CANbus, I2C, UART/USART, LINbus, 3-Wire SIO
Core Processor	78K/0
Core Size	8-Bit
Data Converters	12, 10 b
Mounting Type	Surface Mount
Number of I/O	55
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	64-LQFP
Peripherals	LVD, WDT, PWM, POR
Program Memory Size	48 KB
Program Memory Type	FLASH
RAM Size	2K x 8
Speed	20 MHz
Supplier Device Package	64-LQFP (12x12)
Voltage - Supply (Vcc/Vdd)	5 V

UPD78F0887 Series

8-bit Microcontrollers (Non Promotion)

Part	Speed	Core Processor	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Package / Case	RAM Size	Number of I/O	Peripherals	Data Converters	Program Memory Type	Mounting Type	Core Size	Voltage - Supply (Vcc/Vdd)	Supplier Device Package	Program Memory Size	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Data Converters
Renesas Electronics Corporation UPD78F0887AGKA-GAJ-G	20 MHz	78K/0	85 °C	-40 °C	3-Wire SIO CANbus I2C LINbus UART/USART	64-LQFP	2K x 8	55	LVD POR PWM WDT	10 b 12	FLASH	Surface Mount	8-Bit	5 V	64-LQFP (12x12)	48 KB
Renesas Electronics Corporation UPD78F0884AGAA2-GAM-G	20 MHz	78K/0	125 °C	-40 °C		48-LQFP	2K x 8	41	LVD POR PWM WDT		FLASH	Surface Mount	8-Bit		48-LFQFP (7x7)	32 KB	External Internal	2.7 V	5.5 V	A/D 9x10b SAR
Renesas Electronics Corporation UPD78F0885AGAA-GAM-G	20 MHz	78K/0	85 °C	-40 °C		48-LQFP		41	LVD POR PWM WDT		FLASH	Surface Mount	8-Bit		48-LFQFP (7x7)	48 KB	External Internal	1.8 V	5.5 V	A/D 9x10b SAR
Renesas Electronics Corporation UPD78F0883GB(A2)-GAF-AX
Renesas Electronics Corporation UPD78F0884AGAA-GAM-G	20 MHz	78K/0	85 °C	-40 °C		48-LQFP	2K x 8	41	LVD POR PWM WDT		FLASH	Surface Mount	8-Bit		48-LFQFP (7x7)	32 KB	External Internal	1.8 V	5.5 V	A/D 9x10b SAR
Renesas Electronics Corporation UPD78F0883AGBA2-GAF-G
Renesas Electronics Corporation UPD78F0889GK(A)-GAJ-AX	20 MHz	78K/0	85 °C	-40 °C	3-Wire CANbus CSI LINbus UART/USART	64-LQFP	5K	55	LVD POR PWM WDT		FLASH	Surface Mount	8-Bit		64-LQFP (12x12)	96 KB	External Internal	1.8 V	5.5 V	A/D 12x10b SAR
Renesas Electronics Corporation UPD78F0890GB(A)-GAH-AX	20 MHz	78K/0	85 °C	-40 °C	3-Wire CANbus CSI LINbus UART/USART	64-LQFP	7K x 8	55	LVD POR PWM WDT		FLASH	Surface Mount	8-Bit		64-LQFP (12x12)	128 KB	External Internal	1.8 V	5.5 V	A/D 12x10b SAR
Renesas Electronics Corporation UPD78F0887GB(A)-GAH-AX	20 MHz	78K/0	85 °C	-40 °C	3-Wire CANbus I2C LINbus UART/USART	64-LQFP		55	PWM WDT		FLASH	Surface Mount	8-Bit		64-LFQFP (10x10)	48 KB	External Internal	1.8 V	5.5 V	A/D 12x10b SAR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UPD78F0887 Series

The 78K0/Fx2 is an 8-bit microcontroller with low power consumption for automotive applications.
