EVQ7200-L-00B
ActiveMONOLITHIC POWER SYSTEMS (MPS)

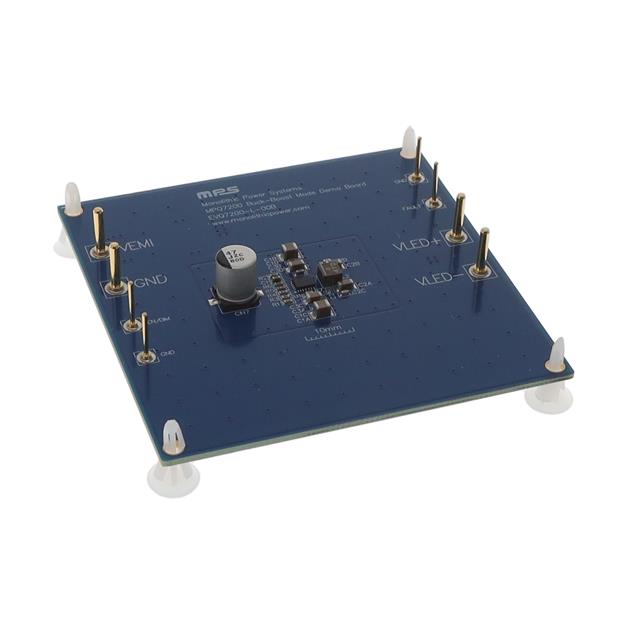

EVAL BOARD FOR MPQ7200-AEC1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EVQ7200-L-00B
ActiveMONOLITHIC POWER SYSTEMS (MPS)
EVAL BOARD FOR MPQ7200-AEC1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EVQ7200-L-00B |
|---|---|
| Current - Output / Channel [custom] | 1.2 A |
| Features | Dimmable |
| Outputs and Type | 1 Non-Isolated Output |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MPQ7200-AEC1 |
| Voltage - Input [Max] | 20 V |
| Voltage - Input [Min] | 6 V |
| Voltage - Output [Max] | 15 V |
| Voltage - Output [Min] | 3 V |
MPQ7200 Series
| Part | Mounting Type | Topology | Frequency | Voltage - Supply (Max) [Max] | Package / Case | Grade | Dimming | Qualification | Number of Outputs | Internal Switch(s) | Type | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output / Channel | Supplier Device Package | Voltage - Supply (Min) [Min] | Applications | Current - Output / Channel [custom] | Outputs and Type | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Supplied Contents | Features | Voltage - Output [Max] | Voltage - Output [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MONOLITHIC POWER SYSTEMS (MPS) | Surface Mount Wettable Flank | Step-Down (Buck) Step-Up (Boost) | 2.3 MHz | 42 V | 19-PowerVFQFN | Automotive | PWM | AEC-Q100 | 1 | DC DC Regulator | 150 °C | -40 °C | 3 A | 19-QFN (3x4) | 6 V | General Purpose | ||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 1.2 A | 1 Non-Isolated Output | 20 V | 6 V | MPQ7200A-AEC1 | Board(s) | Dimmable | |||||||||||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | 1.2 A | 1 Non-Isolated Output | 20 V | 6 V | MPQ7200-AEC1 | Board(s) | Dimmable | 15 V | 3 V | |||||||||||||||||
MONOLITHIC POWER SYSTEMS (MPS) | Surface Mount Wettable Flank | Step-Down (Buck) Step-Up (Boost) | 2.3 MHz | 42 V | 19-PowerVFQFN | Automotive | PWM | AEC-Q100 | 1 | DC DC Regulator | 150 °C | -40 °C | 3 A | 19-QFN (3x4) | 6 V | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 50.00 | |
Description
General part information
MPQ7200 Series
MPQ7200-AEC1 - 1 Non-Isolated Output Dimmable LED Driver Evaluation Board
