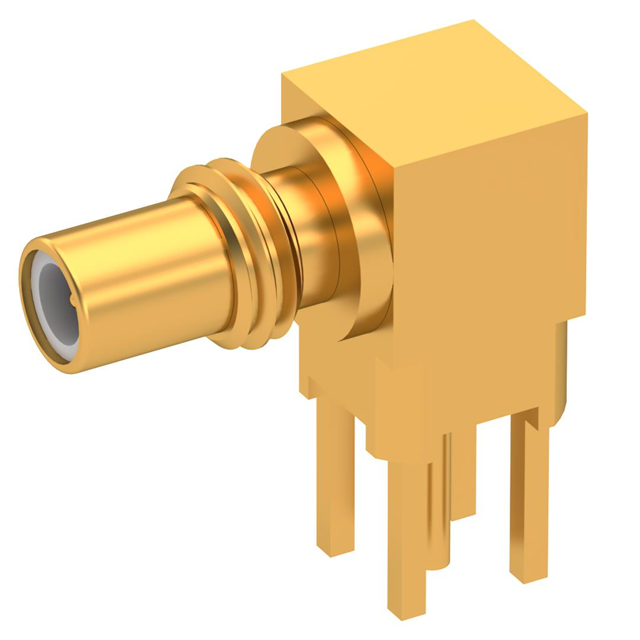

7010-1511-050
ActiveRadiall USA, Inc.
SSMC / RIGHT ANGLE JACK MALE GOL
Deep-Dive with AI
Search across all available documentation for this part.
7010-1511-050
ActiveRadiall USA, Inc.
SSMC / RIGHT ANGLE JACK MALE GOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7010-1511-050 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SSMC |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 12.4 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.78 | |
| 10 | $ 27.83 | |||
| 25 | $ 26.63 | |||
| 50 | $ 25.77 | |||
| 100 | $ 24.91 | |||
| 250 | $ 23.54 | |||
Description
General part information
7010-1511 Series
SSMC Connector Jack, Male Pin 50 Ohms Through Hole, Right Angle Solder
Documents
Technical documentation and resources
No documents available
