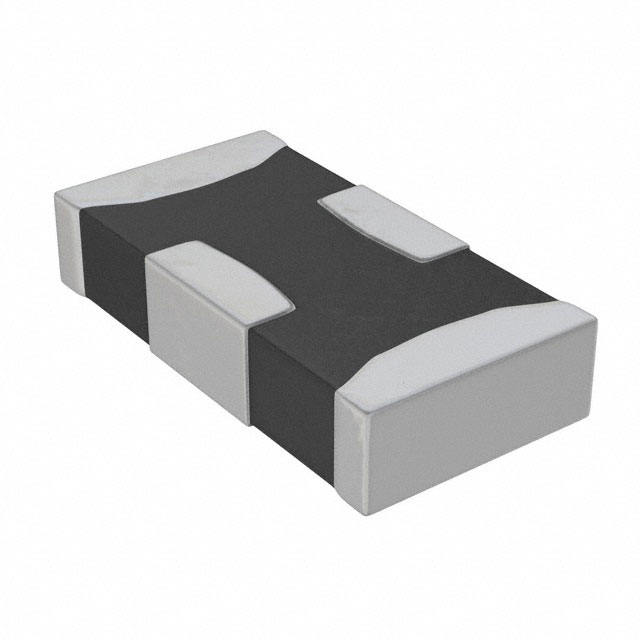

NFM41PC155B1H3L
ActiveMurata Power Solutions Inc.
CAP FEEDTHRU 1.5UF 20% 50V 1806
Deep-Dive with AI
Search across all available documentation for this part.
NFM41PC155B1H3L
ActiveMurata Power Solutions Inc.
CAP FEEDTHRU 1.5UF 20% 50V 1806
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NFM41PC155B1H3L |
|---|---|
| Capacitance | 1.5 µF |
| Current | 6 A |
| DC Resistance (DCR) (Max) [Max] | 9 mOhm |
| Height (Max) [Max] | 0.047 in |
| Height (Max) [Max] | 1.2 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 3 |
| Package / Case | 1806 (4516 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 1.6 mm |
| Size / Dimension [y] | 0.063 in |
| Tolerance | 20 % |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.40 | |
| 10 | $ 2.92 | |||
| 25 | $ 2.85 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.17 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.94 | |||
| Digi-Reel® | 1 | $ 3.40 | ||
| 10 | $ 2.92 | |||
| 25 | $ 2.85 | |||
| 50 | $ 2.79 | |||
| 100 | $ 2.31 | |||
| 250 | $ 2.17 | |||
| 500 | $ 2.04 | |||
| 1000 | $ 1.94 | |||
| Tape & Reel (TR) | 4000 | $ 1.81 | ||
Description
General part information
NFM41PC Series
1.5 µF Feed Through Capacitor 50V 6 A 9mOhm 1806 (4516 Metric), 3 PC Pad
