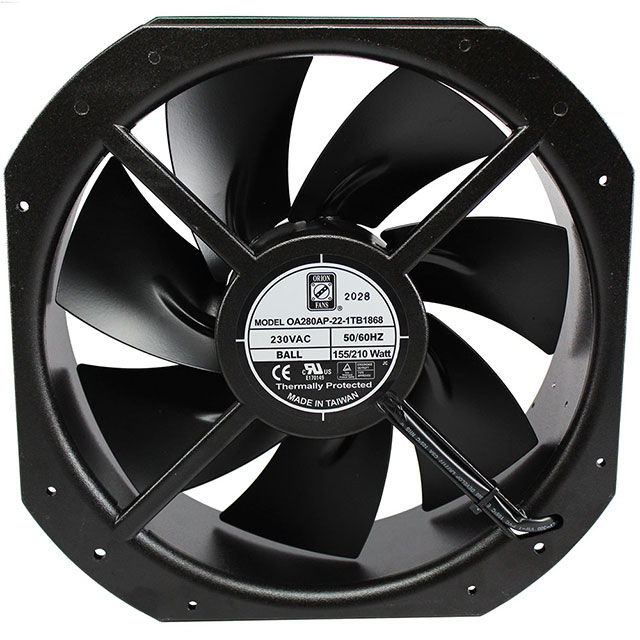

OA280AP-22-1TB1868

Active

Orion Fans

FAN 230AC 280X280X89MM IP68 TERM

Deep-Dive with AI

Search across all available documentation for this part.

OA280AP-22-1TB1868

Active

Orion Fans

FAN 230AC 280X280X89MM IP68 TERM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA280AP-22-1TB1868

Air Flow	1300 CFM
Air Flow	36.4 m³/min
Approval Agency	TUV, CE, cURus, UR
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Ingress Protection	IP68 - Dust Tight, Waterproof
Lifetime @ Temp.	50000 Hrs
Material - Blade	Steel
Material - Frame	Aluminum
Noise	73 dB(A)
Power (Watts)	210 W
RPM	3200 RPM
Size / Dimension [x]	280 mm
Size / Dimension [y]	280 mm
Static Pressure	0.75 in H2O
Static Pressure	186.8 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	3.4 kg
Weight	7.4 lbs
Width [y]	89 mm

OA280AP Series

Part	Power (Watts)	Material - Frame	Fan Type	Width [y]	Noise	Bearing Type	Ingress Protection	Static Pressure	Static Pressure	Voltage - Rated	RPM	Weight	Weight	Approval Agency	Features	Termination	Material - Blade	Size / Dimension [x]	Size / Dimension [y]	Lifetime @ Temp.	Air Flow	Air Flow
Orion Fans OA280AP-22-1WB1868	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP68 - Dust Tight Waterproof	0.75 in H2O	186.8 Pa	230 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min
Orion Fans OA280AP-22-1TB1868	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP68 - Dust Tight Waterproof	0.75 in H2O	186.8 Pa	230 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Terminals	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min
Orion Fans OA280AP-11-1WB1869K	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP69K	0.75 in H2O	186.8 Pa	115 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min
Orion Fans OA280AP-22-1WB1869K	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP69K	0.75 in H2O	186.8 Pa	230 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Wire Leads	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min
Orion Fans OA280AP-22-1TB1869K	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP69K	0.75 in H2O	186.8 Pa	230 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Terminals	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min
Orion Fans OA280AP-11-1TB1868	210 W	Aluminum	Tubeaxial	89 mm	73 dB(A)	Ball	IP68 - Dust Tight Waterproof	0.75 in H2O	186.8 Pa	115 VAC	3200 RPM	3.4 kg	7.4 lbs	CE cURus TUV UR	Capacitor Thermal Overload Protector (TOP)	2 Terminals	Steel	280 mm	280 mm	50000 Hrs	1300 CFM	36.4 m³/min

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 228.71
		10	$ 210.66
		25	$ 197.12
		50	$ 194.11

Description

General part information

OA280AP Series

Fan Tubeaxial 230VAC Square - 280mm L x 280mm H Ball 1300.0 CFM (36.40m³/min) 2 Terminals

Documents

Technical documentation and resources

No documents available
