1637B

Active

Heyco Products Corporation

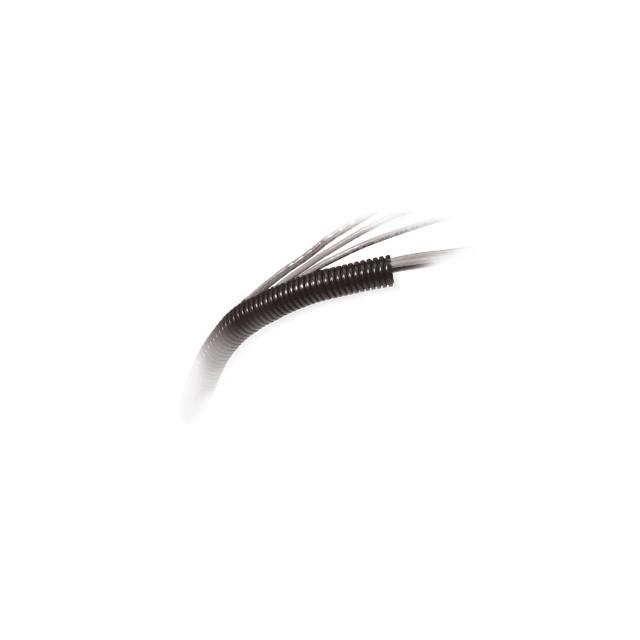

HF5 3/8 SLIT TUBING 100' COIL

Search across all available documentation for this part.

Active

Heyco Products Corporation

HF5 3/8 SLIT TUBING 100' COIL

Technical Specifications

Parameters and characteristics for this part

Specification	1637B

Color	Black
Diameter - Inside [diameter]	0.38 in
Diameter - Inside [diameter]	9.65 mm
Diameter - Outside [diameter]	0.53 in
Diameter - Outside [diameter]	13.46 mm
Liquid Protection	Oil Resistant, Liquid-Tight
Material Flammability Rating	UL94 HB
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Type	Protective Hose, Wire Loom
Type Attributes	Convoluted, Corrugated
Wall Thickness	0.13 mm
Wall Thickness	0.005 "

Part	Material Flammability Rating	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Type Attributes	Wall Thickness	Wall Thickness	Color	Liquid Protection
Heyco Products Corporation 1637B	UL94 HB	0.53 in	13.46 mm	125 °C	-40 °C	0.38 in	9.65 mm	Protective Hose Wire Loom	Convoluted Corrugated	0.13 mm	0.005 "	Black	Liquid-Tight Oil Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Polyamide (PA6), Nylon 6 Convoluted, Corrugated Wire Loom, Protective Hose 0.380" (9.65mm)
