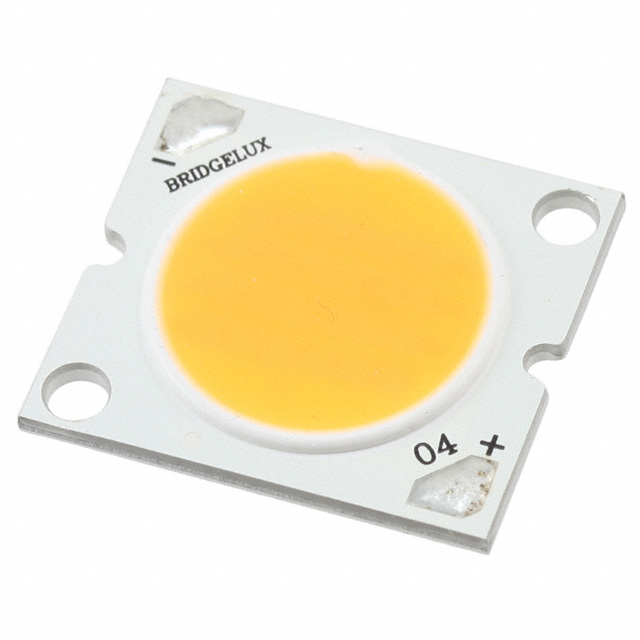

BXRA-W1800-00S0E

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 2700K

Search across all available documentation for this part.

Obsolete

BRIDGELUX

LED COB ES WARM WHT RECT 2700K

Technical Specifications

Parameters and characteristics for this part

Specification	BXRA-W1800-00S0E

CCT (K)	2700 K
Color	White, Warm
Configuration	Rectangle
CRI (Color Rendering Index)	80
Current - Max [Max]	1 A
Height [z]	3.5 mm
Lens Type	Domed
Lumens/Watt @ Current - Test	69 lm/W
Luminous Flux @ Current/Temperature	1840 lm
Size / Dimension [x]	22.8 mm
Size / Dimension [y]	25.8 mm
Type	Chip On Board (COB)
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	38.1 V

Part	Voltage - Forward (Vf) (Typ)	Height [z]	Configuration	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Color	Type	Lens Type	Viewing Angle	Current - Max [Max]	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	CCT (K)
BRIDGELUX BXRA-W1800-00Q0E	38.1 V	3.5 mm	Rectangle	80	75 lm/W	Warm White	Chip On Board (COB)	Domed	120 °	1 A	25.8 mm	22.8 mm	2000 lm
BRIDGELUX BXRA-W1800-00S0E	38.1 V	3.5 mm	Rectangle	80	69 lm/W	Warm White	Chip On Board (COB)	Domed	120 °	1 A	25.8 mm	22.8 mm	1840 lm	2700 K

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) ES White, Warm Rectangle
