DCPDB09MSC1

Active

Switchcraft Inc.

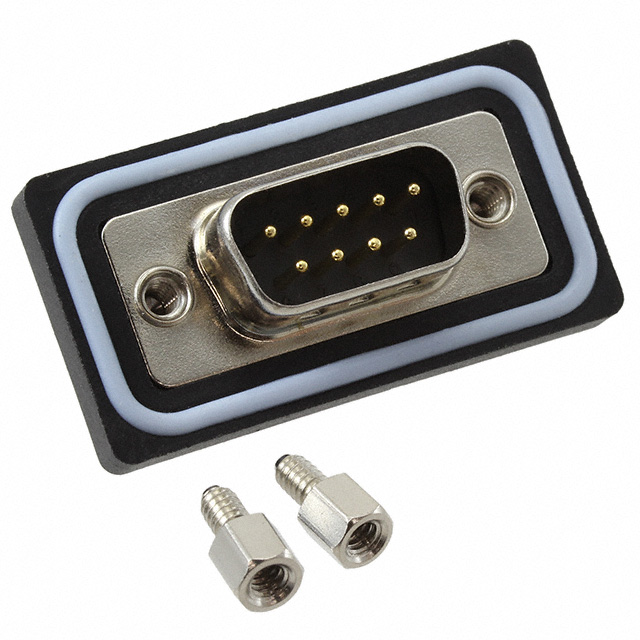

CONN D-SUB PLUG 9POS PNL MNT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN D-SUB PLUG 9POS PNL MNT

Technical Specifications

Parameters and characteristics for this part

Specification	DCPDB09MSC1

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Thermoplastic
Features	Gasket
Flange Feature	Female Screwlock, Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

Part	Number of Positions	Contact Finish	Current Rating (Amps)	Features	Connector Style	Dielectric Material	Color	Ingress Protection	Material Flammability Rating	Contact Material	Connector Type	Wire Gauge [Min]	Wire Gauge [Max]	Contact Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Flange Feature	Operating Temperature [Max]	Operating Temperature [Min]
Switchcraft Inc. DCPDB09FSC1	9	Gold	5 A	Gasket	D-Sub	Thermoplastic	Black	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Alloy	Receptacle Female Sockets	22 AWG	26 AWG	Signal	2	DE E	1	Female Screwlock Mating Side	85 °C	-55 °C
Switchcraft Inc. DCPDB09MSC1	9	Gold	5 A	Gasket	D-Sub	Thermoplastic	Black	IP67 - Dust Tight Waterproof	UL94 V-0	Copper Alloy	Male Pins Plug	22 AWG	26 AWG	Signal	2	DE E	1	Female Screwlock Mating Side	85 °C	-55 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position D-Sub Plug, Male Pins Connector
