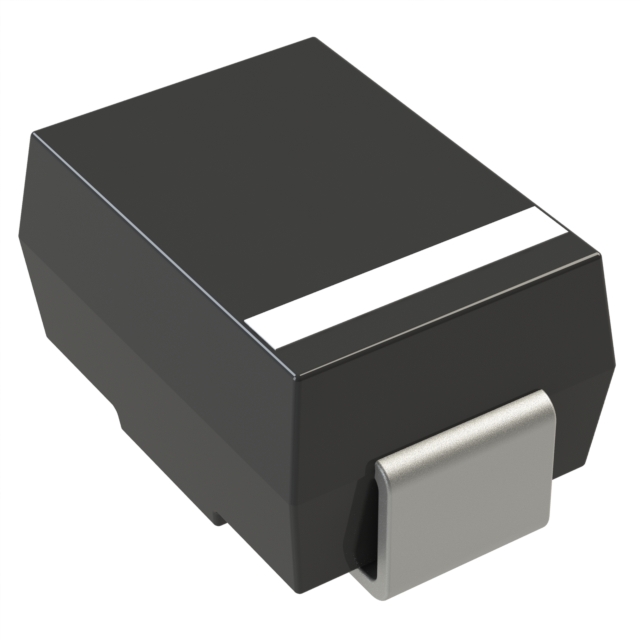

US5M-TP

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	US5M-TP

Current - Average Rectified (Io)	5 A
Current - Reverse Leakage @ Vr	10 çA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SMC, DO-214AB
Reverse Recovery Time (trr)	75 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AB (SMC)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	1000 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Voltage - Forward (Vf) (Max) @ If	Reverse Recovery Time (trr)	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Speed	Current - Average Rectified (Io)	Mounting Type	Technology	Package / Case	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package
Micro Commercial Components US5M-TP	1.7 V	75 ns	150 °C	-55 °C	10 çA	200 mA 500 ns	5 A	Surface Mount	Standard	DO-214AB SMC	1000 V	DO-214AB (SMC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	3000	$ 0.11

General part information

Diode 1000 V 5A Surface Mount DO-214AB (SMC)
