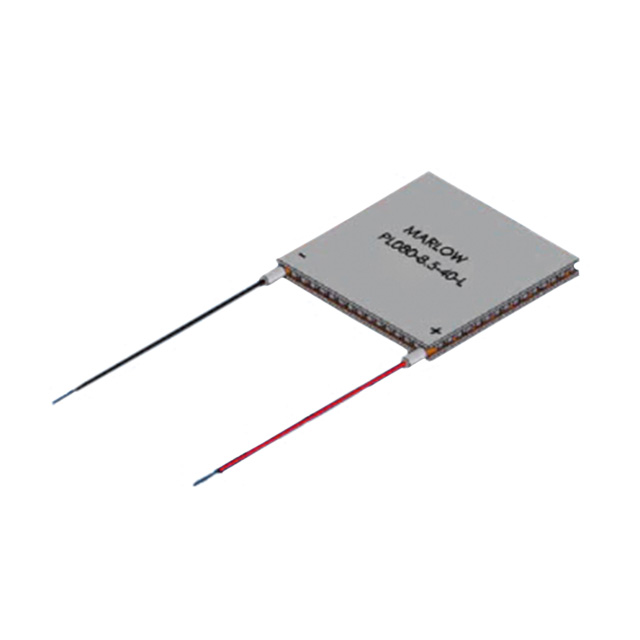

PL080-8.5-40-01LS

Active

Marlow Industries, Inc.

TEM 40X40X3.33MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 40X40X3.33MM

Technical Specifications

Parameters and characteristics for this part

Part	Height [z]	Features	Resistance	Size / Dimension [y]	Size / Dimension [x]	Voltage - Max [Max]	Qmax @ Th	Delta Tmax @ Th	Current - Max [Max]	Number of Stages
Marlow Industries, Inc. PL080-8.5-40-02	4.17 mm	Lead Wires	1.45 Ohms	40 mm	40 mm	14.7 V	78 W	66 °C	8.5 A	1
Marlow Industries, Inc. PL080-8.5-40-01	3.48 mm	Lead Wires	1.45 Ohms	40 mm	40 mm	14.7 V	78 W	66 °C	8.5 A	1
Marlow Industries, Inc. PL080-8.5-40-02L	3.94 mm	Lapped Lead Wires	1.45 Ohms	40 mm	40 mm	14.7 V	78 W	66 °C	8.5 A	1
Marlow Industries, Inc. PL080-8.5-40-01LS	3.33 mm	Lapped Lead Wires Sealed	1.45 Ohms	40 mm	40 mm	14.7 V	78 W	66 °C	8.5 A	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 51.42

General part information

Peltier Module 78.0W @ 27°C 8.5 A 85°C

Technical documentation and resources

No documents available
