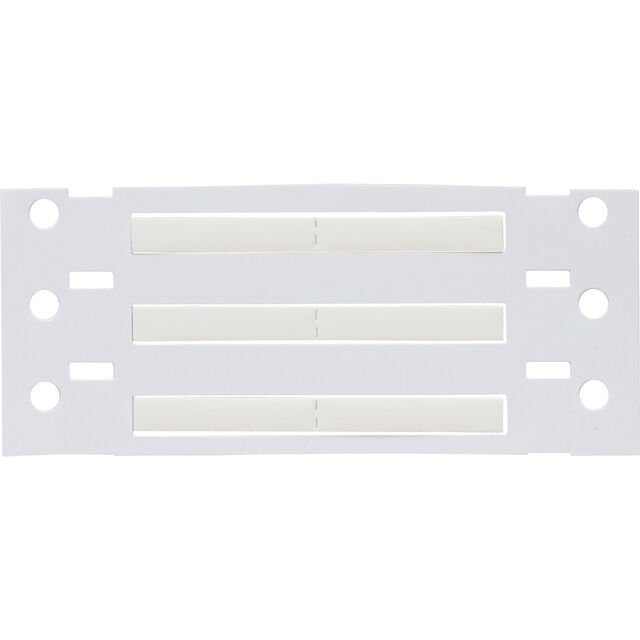

2HX-125-2.3-WT-2

Active

BRADY

SLEEVE, 0.125 IN DIA X 1.15 IN W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

2HX-125-2.3-WT-2

Active

BRADY

SLEEVE, 0.125 IN DIA X 1.15 IN W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2HX-125-2.3-WT-2

Color	White
Label Size [diameter]	0.13 in
Label Size [diameter]	3.2 mm
Label Size [Max] [diameter]	0.11 "
Label Size [Max] [diameter]	2.8 mm
Label Size [Min] [diameter]	0.06 in
Label Size [Min] [diameter]	1.6 mm
Label Size [x]	29.2 mm
Label Size [x]	1.15 "
Label Type	Heat Shrinkable
Material	Polyolefin (PO)
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C

2HX-125 Series

Part	Material	Label Type	Operating Temperature [Min]	Operating Temperature [Max]	Label Size [Min]	Label Size [x]	Label Size [diameter]	Label Size [Max]	Color	Label Size [diameter]	Label Size [Max]	Label Size [x]	Label Size [Min]	Label Size [Max] [diameter]	Label Size [Min] [diameter]	Label Size [Min] [diameter]	Label Size [Max] [diameter]
BRADY 2HX-125-2-YL-J-2	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	0.06 " 1.6 mm	25.4 mm	0.13 in 3.2 mm	0.11 in 2.8 mm	Yellow
BRADY 2HX-125-2-YL-J	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	1.6 mm	50.8 mm	3.2 mm	2.8 mm	Yellow	0.13 in	0.11 in	2 "	0.06 in
BRADY 2HX-125-2-BK-3	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	0.06 " 1.6 mm	0.67 in 17 mm	0.13 in 3.2 mm	0.11 in 2.8 mm	Black
BRADY 2HX-125-2.3-WT	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	1.6 mm	58.4 mm	3.2 mm	2.8 mm	White	0.13 in	0.11 in	2.3 in	0.06 in
BRADY 2HX-125-2-YL-4	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C		12.7 mm	1.6 mm 2.8 mm 3.2 mm		Yellow	0.06 in 0.11 in 0.13 in		0.5 "
BRADY 2HX-125-2-YL-3	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	0.06 " 1.6 mm	0.67 in 17 mm	0.13 in 3.2 mm	0.11 in 2.8 mm	Yellow
BRADY 2HX-125-2-YL-2	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	0.06 " 1.6 mm	25.4 mm	0.13 in 3.2 mm	0.11 in 2.8 mm	Yellow
BRADY 2HX-125-2-WT-SC	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	1.6 mm	50.8 mm	3.2 mm	2.8 mm	White	0.13 in	0.11 in	2 "	0.06 in
BRADY 2HX-125-2-WT-3	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C	0.06 " 1.6 mm	0.67 in 17 mm	0.13 in 3.2 mm	0.11 in 2.8 mm	White
BRADY 2HX-125-2.3-WT-2	Polyolefin (PO)	Heat Shrinkable	-40 °C	120 °C		29.2 mm	3.2 mm		White	0.13 in		1.15 "		0.11 "	0.06 in	1.6 mm	2.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1854.30

Description

General part information

2HX-125 Series

White Heat Shrinkable Label 1.15" W x 0.13" Dia (29.2mm x 3.2mm); Cable O.D. 0.06" ~ 0.11" (1.6mm ~ 2.8mm)
