PX0579/28
ActiveBULGIN LIMITED

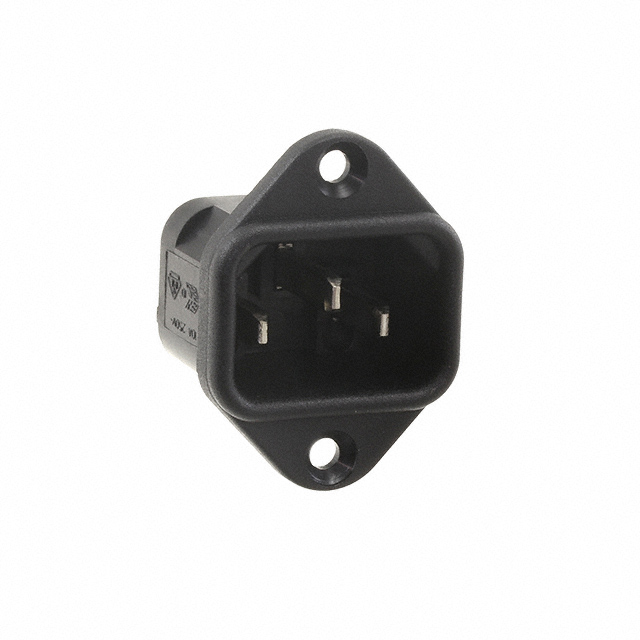

PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
PX0579/28
ActiveBULGIN LIMITED
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0579/28 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | CSA, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Features | Front or Rear Side Mount |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions | Variable Size |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.71 | |
| 10 | $ 3.37 | |||
| 25 | $ 3.19 | |||
| 50 | $ 3.12 | |||
| 100 | $ 2.97 | |||
| 250 | $ 2.60 | |||
| 500 | $ 2.52 | |||
| 1000 | $ 2.15 | |||
| 2500 | $ 2.00 | |||
Description
General part information
PX0579 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
