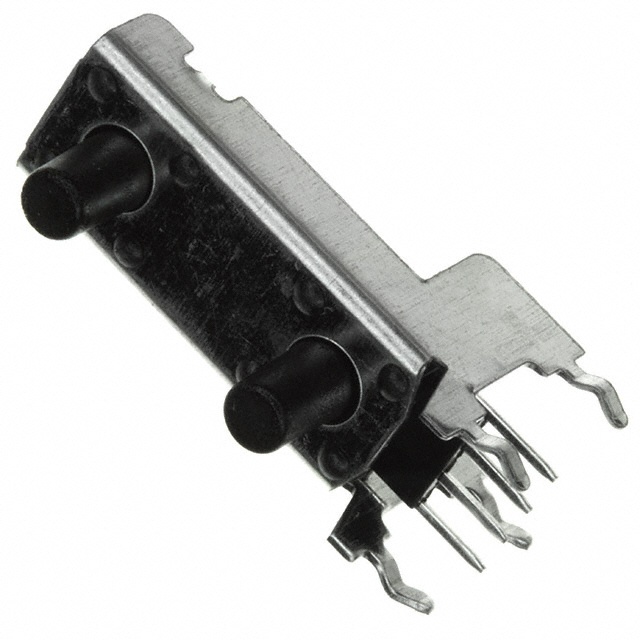

TL53EF160Q

Active

E-Switch

MICROSWITCH TACT; NO + NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.57N

Search across all available documentation for this part.

Active

E-Switch

MICROSWITCH TACT; NO + NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.57N

Technical Specifications

Parameters and characteristics for this part

Specification	TL53EF160Q

Actuator Length, Right Angle [x]	7.35 mm
Actuator Material	Acetal
Actuator Orientation	Side Actuated
Actuator Type	Dual
Circuit	SPST x 2
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	8.4 mm
Outline [y]	10.5 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Actuator Type	Termination Style	Actuator Material	Switch Function	Actuator Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Actuator Length, Right Angle [x]	Mechanical Life	Mounting Type	Switch Travel	Outline [x]	Outline [y]	Contact Rating @ Voltage	Illumination	Operating Force
E-Switch TL53EF160Q	Dual	PC Pin	Acetal	Off-Mom	Side Actuated	-20 C	70 °C	SPST x 2	7.35 mm	100000 Cycles	Through Hole Right Angle	0.25 mm	8.4 mm	10.5 mm	0.05 A 12 VDC	Non-Illuminated
E-Switch TL53EF100Q	Dual	PC Pin	Acetal	Off-Mom	Side Actuated	-20 C	70 °C	SPST x 2	7.35 mm	100000 Cycles	Through Hole Right Angle	0.25 mm	8.4 mm	10.5 mm	0.05 A 12 VDC	Non-Illuminated	100 gf

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST x 2 Side Actuated Through Hole, Right Angle
