SS-040000-F00-YSB10

Active

Amphenol LTW

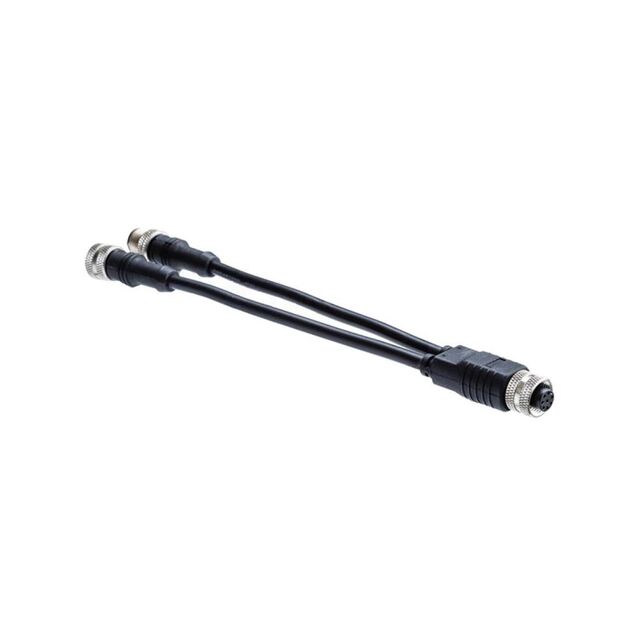

M SERIES SENSOR CONNECTOR, Y CABLE, METAL, A CODING, 4A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, SCREW THREAD, LENGTH 10000 M

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, Y CABLE, METAL, A CODING, 4A, 04 PINS, FEMALE CONNECTOR, FEMALE CONTACT, SCREW THREAD, LENGTH 10000 M

Technical Specifications

Parameters and characteristics for this part

Specification	SS-040000-F00-YSB10

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	M12
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Y-Adapter on One End
Cable Material	Polyurethane (PUR)
Cable Type	Round - Split
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof; NMEA 2000
Shielding	Unshielded
Usage	Industrial Environments

Part	Usage	2nd Connector Type	1st Connector Shell Size - Insert	1st Connector Type	Cable Type	1st Connector Number of Positions Loaded	1st Connector Orientation [custom]	Color	Ingress Protection	Assembly Configuration	1st Connector Mounting Type	1st Connector Number of Positions	Cable Material	Shielding	1st Connector Gender	Length [x]	Length [x]
Amphenol LTW SS-040000-F00-YSB10	Industrial Environments	Wire Leads	M12	Plug	Round - Split	All	Keyed	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Y-Adapter on One End	Free Hanging (In-Line)	4	Polyurethane (PUR)	Unshielded	Female Sockets
Amphenol LTW SS-040000-M00-YSB02	Industrial Environments	Wire Leads	M12	Receptacle	Round - Split	All	Keyed	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Y-Adapter on One End	Free Hanging (In-Line)	4	Polyurethane (PUR)	Unshielded	Male Pins	2 m	6.56 ft
Amphenol LTW SS-040000-F00-YSB05	Industrial Environments	Wire Leads	M12	Plug	Round - Split	All	Keyed	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Y-Adapter on One End	Free Hanging (In-Line)	4	Polyurethane (PUR)	Unshielded	Female Sockets
Amphenol LTW SS-040000-F00-YSB01	Industrial Environments	Wire Leads	M12	Plug	Round - Split	All	Keyed	Black	IP68 - Dust Tight Waterproof; NMEA 2000	Y-Adapter on One End	Free Hanging (In-Line)	4	Polyurethane (PUR)	Unshielded	Female Sockets	1 m	3.28 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 32.8' (10.00m)
