8PM-11-0004-02-260

Active

PRECI-DIP SA

CONN SPRING PISTON 4POS R/A SMD

Search across all available documentation for this part.

Active

PRECI-DIP SA

CONN SPRING PISTON 4POS R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Pitch [x]	Pitch [x]	Number of Contacts	Number of Rows	Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Contact Finish	Mounting Type	Number of Contacts [custom]
PRECI-DIP SA 8PM-11-0005-02-131191	2.54 mm	0.1 in	5	1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle
PRECI-DIP SA 8PM-11-0006-02-260	2.54 mm	0.1 in		1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle	6
PRECI-DIP SA 8PM-11-0005-02-260	2.54 mm	0.1 in	5	1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle
PRECI-DIP SA 8PM-11-0008-02-131	2.54 mm	0.1 in	8	1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle
PRECI-DIP SA 8PM-11-0008-02-131191	2.54 mm	0.1 in	8	1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle
PRECI-DIP SA 8PM-11-0004-02-260191	2.54 mm	0.1 in		1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle	4
PRECI-DIP SA 8PM-11-0004-02-260	2.54 mm	0.1 in		1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle	4
PRECI-DIP SA 8PM-11-0006-02-131	2.54 mm	0.1 in		1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle	6
PRECI-DIP SA 8PM-11-0002-02-131	2.54 mm	0.1 in		1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle
PRECI-DIP SA 8PM-11-0010-02-131	2.54 mm	0.1 in	10	1	Brass	10 Áin	0.25 Ám	Piston	Gold	Surface Mount Right Angle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

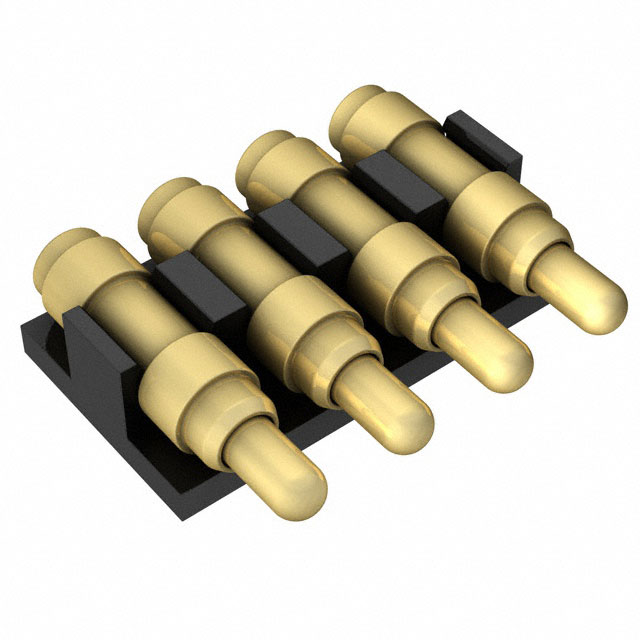

4 Position Spring Piston Connector Surface Mount, Right Angle
