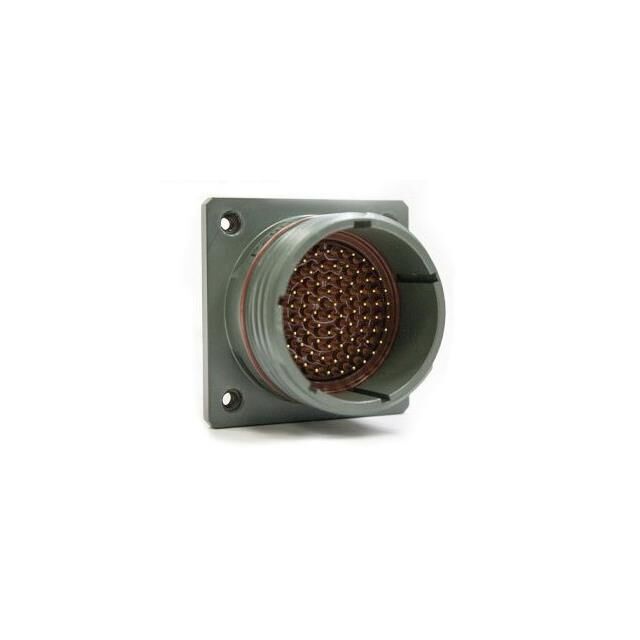

D38999/24ZB98PB

Active

Conesys

AE3 6C 6#20 PIN RECP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

D38999/24ZB98PB

Active

Conesys

AE3 6C 6#20 PIN RECP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D38999/24ZB98PB

Applications	Aviation, Marine, Military
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	6
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-65 ░C
Orientation	B
Primary Material	Metal
Shell Finish	Black Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert	11-98
Shell Size, MIL	B
Shielding	Shielded
Termination	Crimp

D38999/24ZB Series

Part	Shell Size, MIL	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Shell Material	Insert Material	Termination	Shell Size - Insert	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Color	Contact Finish - Mating	Primary Material	Connector Type	Current Rating (Amps)	Orientation	Contact Material	Shell Finish	Ingress Protection	Type	Note	Housing Color	Grade	Contact Size	Qualification	Contact Shape	Material Flammability Rating	Contact Type	Voltage Rating	Mounting Type
Conesys D38999/24ZB4SC	B	Aviation Marine Military	1.27 µm	50 µin	Shielded	Aluminum	Thermoplastic	Crimp	11-4	Bulkhead - Front Side Nut	-65 ░C	200 °C	4	Black	Gold	Metal	Receptacle Female Sockets	7.5 A	C	Copper Alloy	Black Zinc Nickel	IP67 - Dust Tight Waterproof
Conesys D38999/24ZB2BB	J				Shielded	Aluminum Alloy	Thermoplastic		11-2	Bulkhead - Front Side Nut	-65 ░C	347 °F	2			Metal	Receptacle Housing		B		Black Zinc Nickel	Waterproof	For Female Sockets	Contacts Not Included	Black	Military	16	MIL-DTL-38999 Series III	Circular	UL94 V-0	Crimp
Conesys D38999/24ZB98SB	B	Aerospace Marine Military	1.27 µm	50 µin	Shielded	Aluminum Alloy	Thermoplastic	Crimp	11-98	Bulkhead - Front Side Nut	-65 ░C	125 °C	6	Black	Gold	Metal	Receptacle Female Sockets	7.5 A	B	Copper Alloy	Black Zinc Nickel	Waterproof				Military		MIL-DTL-38999 Series III		UL94 V-0		500 VAC
Conesys D38999/24ZB99PB	B	Aerospace Marine Military	1.27 µm	50 µin	Shielded	Aluminum Alloy	Thermoplastic	Crimp	11-99	Bulkhead - Front Side Nut	-65 ░C	125 °C	7	Black	Gold	Metal	Male Pins Receptacle	7.5 A	B	Copper Alloy	Black Zinc Nickel	Waterproof				Military		MIL-DTL-38999 Series III		UL94 V-0		500 VAC
Conesys D38999/24ZB2PB	B	Aviation Marine Military	1.27 µm	50 µin	Shielded	Aluminum	Thermoplastic	Crimp	11-2	Bulkhead - Front Side Nut	-65 ░C	200 °C	2	Black	Gold	Metal	Male Pins Receptacle	13 A	B	Copper Alloy	Black Zinc Nickel	IP67 - Dust Tight Waterproof
Conesys D38999/24ZB98PB	B	Aviation Marine Military	1.27 µm	50 µin	Shielded	Aluminum	Thermoplastic	Crimp	11-98	Bulkhead - Front Side Nut	-65 ░C	200 °C	6	Black	Gold	Metal	Male Pins Receptacle	7.5 A	B	Copper Alloy	Black Zinc Nickel	IP67 - Dust Tight Waterproof
Conesys D38999/24ZB99AA	H				Shielded	Aluminum Alloy	Thermoplastic		11-99	Bulkhead - Front Side Nut	-65 ░C	347 °F	7			Metal	Receptacle Housing		A		Black Zinc Nickel	Waterproof	For Male Pins	Contacts Not Included	Black	Military	20	MIL-DTL-38999 Series III	Circular	UL94 V-0	Crimp
Conesys D38999/24ZB2AB	B				Shielded	Aluminum			11-2	Bulkhead - Front Side Nut	-65 ░C	347 °F	2				Receptacle Housing		B		Zinc Nickel	Environment Resistant	For Male Pins	Contacts Not Included	Black	Military	16	MIL-DTL-38999 Series III	Circular		Crimp
Conesys D38999/24ZB2AA	H				Shielded	Aluminum Alloy	Thermoplastic		11-2	Bulkhead - Front Side Nut	-65 ░C	347 °F	2			Metal	Receptacle Housing		A		Black Zinc Nickel	Waterproof	For Male Pins	Contacts Not Included	Black	Military	16	MIL-DTL-38999 Series III	Circular	UL94 V-0	Crimp
Conesys D38999/24ZB4AC	B				Shielded	Aluminum		Crimp	B-4	Rear Side Nut	-65 ░C	200 °C	4	Black		Metal	Male Pins Receptacle		C		Black Zinc Nickel												Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 66.98
		25	$ 60.29
		50	$ 54.82

Description

General part information

D38999/24ZB Series

6 Position Circular Connector Receptacle, Male Pins Crimp
