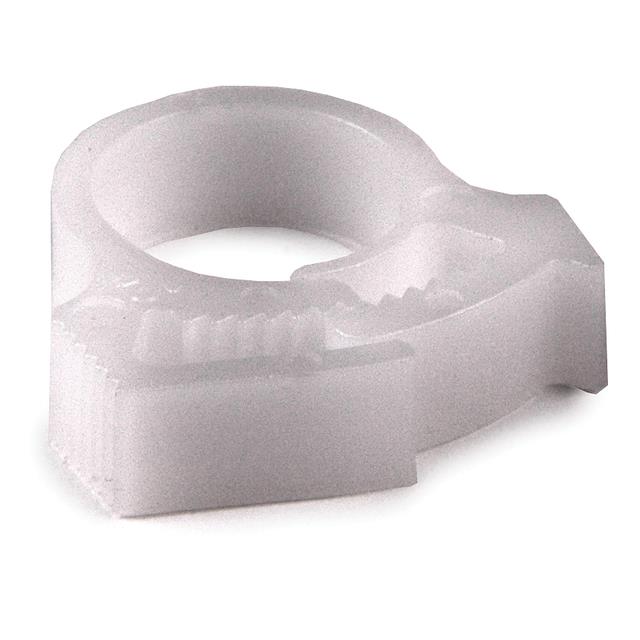

SNP710M4

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Search across all available documentation for this part.

Active

HELLERMANNTYTON

CBL CLIP HOSE WHITE

Technical Specifications

Parameters and characteristics for this part

Specification	SNP710M4

Color	White
Length [Max] [x]	0.971 in
Length [Max] [x]	24.66 mm
Length [Min] [x]	16.43 mm
Length [Min] [x]	0.647 in
Material	Polyacetal (POM)
Material Flammability Rating	UL94 HB
Material Thickness	0.069 in
Material Thickness	1.75 mm
Opening Size [Max]	13.87 mm
Opening Size [Max] [z]	0.546 in
Opening Size [Min]	11.5 mm
Opening Size [Min] [z]	0.453 in
Type	Clamp, Hose
Type Attributes	Push-Fit
Width	5.92 mm
Width [x]	0.233 in

Part	Opening Size [Max]	Opening Size [Min] [z]	Opening Size [Min]	Opening Size [Max] [z]	Length [Min] [x]	Length [Max] [x]	Length [Max] [x]	Length [Min] [x]	Material Flammability Rating	Material	Material Thickness	Material Thickness	Width	Width [x]	Type Attributes	Color	Type
HELLERMANNTYTON SNP710M4	13.87 mm	0.453 in	11.5 mm	0.546 in	16.43 mm	0.971 in	24.66 mm	0.647 in	UL94 HB	Polyacetal (POM)	0.069 in	1.75 mm	5.92 mm	0.233 in	Push-Fit	White	Clamp Hose
