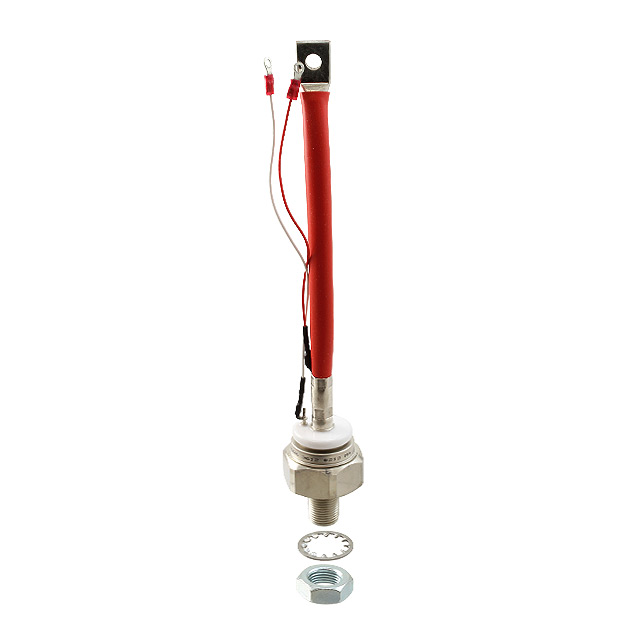

T700123504BY

Active

Powerex Inc.

SCR MODULE, 350 A, 1.2 KV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

T700123504BY

Active

Powerex Inc.

SCR MODULE, 350 A, 1.2 KV

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T700123504BY

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	10000 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	9100 A
Current - Off State (Max) [Max]	30 mA
Current - On State (It (AV)) (Max) [Max]	350 A
Mounting Type	Chassis, Stud Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	TO-209 Variation
SCR Type	Standard Recovery
Supplier Device Package	TO-209 Variation
Voltage - Off State	1.2 kV
Voltage - On State (Vtm) (Max) [Max]	1.4 V

T700123504 Series

Part	Mounting Type	Supplier Device Package	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Voltage - On State (Vtm) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Off State	Current - Off State (Max) [Max]	SCR Type	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Current - On State (It (AV)) (Max) [Max]
Powerex Inc. T700123504BY	Chassis Stud Mount	TO-209 Variation	10000 A	9100 A	1.4 V	125 °C	-40 °C	1.2 kV	30 mA	Standard Recovery	TO-209 Variation	150 mA	350 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 243.97

Description

General part information

T700123504 Series

The T700123504BY is a 350A Silicon Controlled Rectifier (SCR) designed for use in applications requiring phase control and isolated packaging. It is all-diffused, compression bonded encapsulated (CBE) device employing the field-proven amplifying (di/namic) gate.
