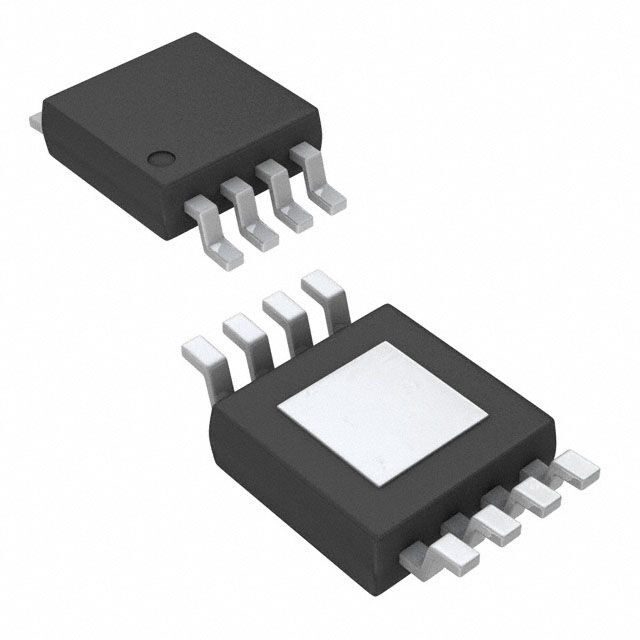

S-19243E00A-E8T1U
ActiveABLIC Inc.
IC REG LIN POS ADJ 500MA 8-HSOPA
Deep-Dive with AI
Search across all available documentation for this part.
S-19243E00A-E8T1U
ActiveABLIC Inc.
IC REG LIN POS ADJ 500MA 8-HSOPA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S-19243E00A-E8T1U |
|---|---|
| Control Features | Soft Start |
| Current - Output | 500 mA |
| Current - Quiescent (Iq) | 150 çA |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 0.154 in |
| Package / Case | 8-SOIC |
| Package / Case | 3.9 mm |
| Protection Features | Over Current, Over Temperature |
| Qualification | AEC-Q100 |
| Supplier Device Package | 8-HSOPA |
| Voltage - Input (Max) [Max] | 10 V |
| Voltage - Output (Max) [Max] | 9 V |
| Voltage - Output (Min/Fixed) | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.93 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 1.01 | |||
| Digi-Reel® | 1 | $ 1.93 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.29 | |||
| 100 | $ 1.15 | |||
| 250 | $ 1.09 | |||
| 500 | $ 1.05 | |||
| 1000 | $ 1.01 | |||
| Tape & Reel (TR) | 4000 | $ 0.88 | ||
Description
General part information
S-19243 Series
Linear Voltage Regulator IC Positive Adjustable 1 Output 500mA 8-HSOPA
Documents
Technical documentation and resources
No documents available
