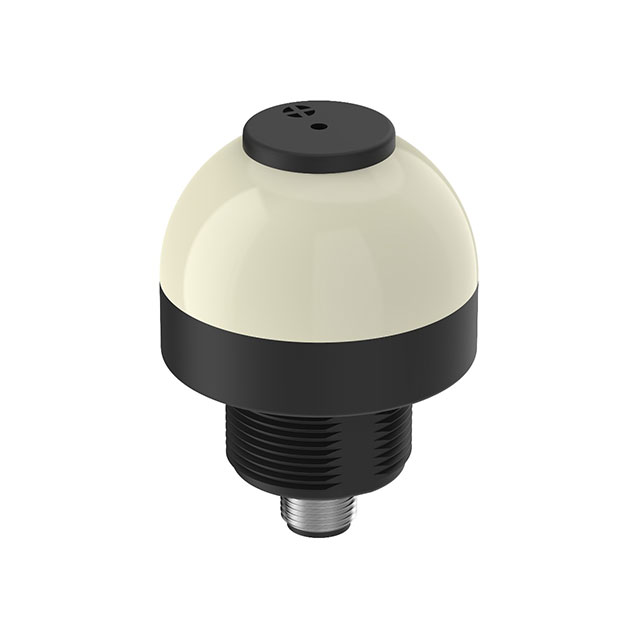

K50 PRO SERIES: 7-COLOR RGB AUDIBLE INDICATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

K50L2RGB7AL1Q

Active

BANNER ENGINEERING

K50 PRO SERIES: 7-COLOR RGB AUDIBLE INDICATOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	K50L2RGB7AL1Q

Function - Audible	Multiple
Function - Lighting	Steady
Ingress Protection	IP50
Light Color	Cyan, Red, Blue, Green, Magenta, White, Yellow
Number of Stacks	7
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-20 C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

K50L2 Series

Part	Type	Ingress Protection	Number of Stacks	Function - Audible	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Termination Style	Function - Lighting	Light Color	Features
BANNER ENGINEERING K50L2RGB7A1Q	Complete Unit	IP50	7	Multiple	50 °C	-20 C	30 VDC	10 VDC	Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2FRGB7QP	Complete Unit	IP66 IP67 IP69K	7	Multiple	50 °C	-40 °C	30 VDC	10 VDC	Cable with Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2RGB7QP	Complete Unit	IP66 IP67 IP69K	7	Multiple	50 °C	-40 °C	30 VDC	10 VDC	Cable with Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2RGB7AL1Q	Complete Unit	IP50	7	Multiple	50 °C	-20 C	30 VDC	10 VDC	Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2FRGBKQP	Complete Unit	IP66 IP67 IP69K	7	Multiple	50 °C	-40 °C	30 VDC	10 VDC	Cable with Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2RGB7ALSQ	Complete Unit	IP66 IP67 IP69K	7	Multiple	50 °C	-20 C	30 VDC	10 VDC	Connector	Steady	Blue Cyan Green Magenta Red White Yellow
BANNER ENGINEERING K50L2RGBKQP	Complete Unit	IP50		Multiple	50 °C	-40 °C	30 VDC	18	Cable with Connector	Steady		Alarm
BANNER ENGINEERING K50L2RGBKALSQ	Complete Unit	IP66 IP67 IP69K		Multiple	50 °C	-20 C	30 VDC	18	Connector	Steady		Alarm
BANNER ENGINEERING K50L2RGB7AL1	Complete Unit	IP50	3	Multiple	50 °C	-20 C	30 VDC	10 VDC	Wire Leads	Steady	Blue Green Red	Alarm
BANNER ENGINEERING K50L2FRGB7	Complete Unit	IP66 IP67 IP69K	7	Multiple	50 °C	-40 °C	30 VDC	10 VDC	Wire Leads	Steady	Blue Cyan Green Magenta Red White Yellow

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 145.00
Newark	Each	1	$ 145.00

Description

General part information

K50L2 Series

Stack Light Complete Unit Blue, Cyan, Green, Magenta, Red, White, Yellow LED Connector
