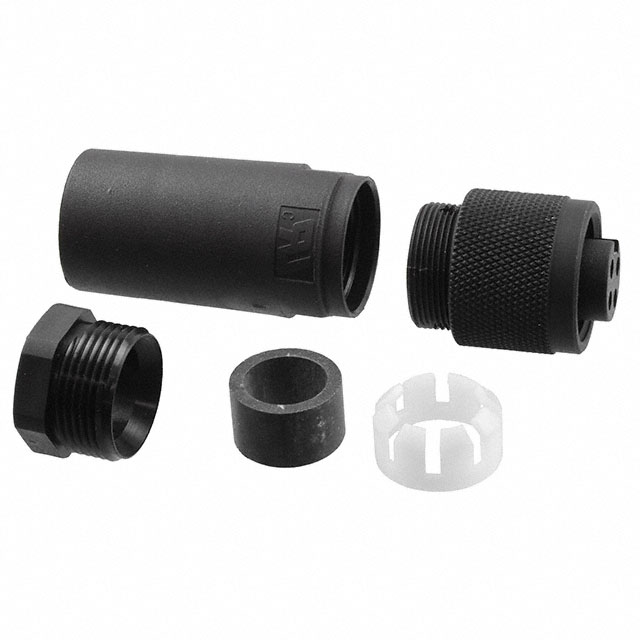

RKC 40/16
ActiveLUMBERG AUTOMATION
SENSOR CONNECTOR, RKC SERIES, 7/8", FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
RKC 40/16
ActiveLUMBERG AUTOMATION
SENSOR CONNECTOR, RKC SERIES, 7/8", FEMALE, 4 POSITIONS, SCREW SOCKET, STRAIGHT CABLE MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RKC 40/16 |
|---|---|
| Applications | Industrial, Automotive |
| Backshell Material, Plating | Polyamide (PA), Nylon |
| Cable Opening [Max] [custom] | 14 mm |
| Cable Opening [Max] [custom] | 0.551 in |
| Cable Opening [Min] [custom] | 12 mm |
| Cable Opening [Min] [custom] | 0.472 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic Polyurethane (TPU) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | 7/8"-4 |
| Termination | Screw |
| Voltage Rating | 250 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RKC Series
4 Position Circular Connector Plug, Female Sockets Screw
