CC1R5-1205SF-E

Active

TDK-LAMBDA

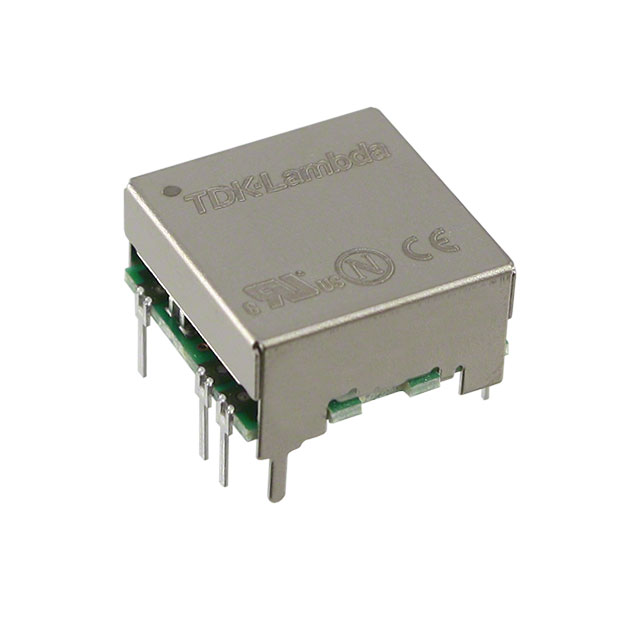

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 1.5 W, 1 OUTPUT, 5 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet CC-E +5

CC1R5-1205SF-E

Active

TDK-LAMBDA

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 1.5 W, 1 OUTPUT, 5 V

Deep-Dive with AI

DocumentsDatasheet CC-E +5

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CC1R5-1205SF-E

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	300 mA
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-DIP Module
Size / Dimension [x]	0.65 in
Size / Dimension [x]	16.5 mm
Size / Dimension [y]	0.65 in
Size / Dimension [y]	16.6 mm
Size / Dimension [z]	0.34 in
Size / Dimension [z]	8.5 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	500 V
Voltage - Output 1	5 V

CC1R5 Series

Part	Voltage - Output 1	Applications	Current - Output (Max) [Max]	Type	Package / Case	Voltage - Input (Min) [Min]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Control Features	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Mounting Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Voltage - Output 2 [Min]	Voltage - Output 2 [Max]
TDK-LAMBDA CC1R5-1203SR-E	3.3 V	ITE (Commercial)	400 mA	Isolated Module	7-SMD Module	9 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	1	Active Low Enable	18 V	85 °C	-40 °C	500 V	Surface Mount
TDK-LAMBDA CC1R5-4803SR-E	3.3 V	ITE (Commercial)	400 mA	Isolated Module	7-SMD Module	36 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	1	Active Low Enable	76 V	85 °C	-40 °C	500 V	Surface Mount
TDK-LAMBDA CC1R5-0503SF-E	3.3 V	ITE (Commercial)	400 mA	Isolated Module	7-DIP Module	4.5 V	0.34 in	0.65 in	16.6 mm	0.65 in	8.5 mm	16.5 mm	1	Active Low Enable	9 V	85 °C	-40 °C	500 V	Through Hole
TDK-LAMBDA CC1R5-0512DF-E		ITE (Commercial)		Isolated Module	7-DIP Module	4.5 V	0.34 in	0.65 in	16.6 mm	0.65 in	8.5 mm	16.5 mm	2	Active Low Enable	9 V	85 °C	-40 °C	500 V	Through Hole	60 mA	60 mA	15 V	12 V	-15 V	-12 V
TDK-LAMBDA CC1R5-1205SR-E	5 V	ITE (Commercial)	300 mA	Isolated Module	7-SMD Module	9 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	1	Active Low Enable	18 V	85 °C	-40 °C	500 V	Surface Mount
TDK-LAMBDA CC1R5-0503SR-E	3.3 V	ITE (Commercial)	400 mA	Isolated Module	7-SMD Module	4.5 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	1	Active Low Enable	9 V	85 °C	-40 °C	500 V	Surface Mount
TDK-LAMBDA CC1R5-1205SF-E	5 V	ITE (Commercial)	300 mA	Isolated Module	7-DIP Module	9 V	0.34 in	0.65 in	16.6 mm	0.65 in	8.5 mm	16.5 mm	1	Active Low Enable	18 V	85 °C	-40 °C	500 V	Through Hole
TDK-LAMBDA CC1R5-4812DF-E		ITE (Commercial)		Isolated Module	7-DIP Module	36 V	0.34 in	0.65 in	16.6 mm	0.65 in	8.5 mm	16.5 mm	2	Active Low Enable	76 V	85 °C	-40 °C	500 V	Through Hole	60 mA	60 mA	15 V	12 V	-15 V	-12 V
TDK-LAMBDA CC1R5-1212SR-E		ITE (Commercial)	125 mA	Isolated Module	7-SMD Module	9 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	1	Active Low Enable	18 V	85 °C	-40 °C	500 V	Surface Mount			15 V	12 V
TDK-LAMBDA CC1R5-0512DR-E		ITE (Commercial)		Isolated Module	7-SMD Module	4.5 V	0.35 "	0.65 in	16.6 mm	0.65 in	8.8 mm	16.5 mm	2	Active Low Enable	9 V	85 °C	-40 °C	500 V	Surface Mount	60 mA	60 mA	15 V	12 V	-15 V	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 10.75
		10	$ 10.23
		25	$ 9.58
		50	$ 9.14
Newark	Each	10	$ 10.23
		25	$ 9.58
		50	$ 9.14

Description

General part information

CC1R5 Series

The CC-E series ultra compact single and dual DC-DC Converter with input - output isolation.
