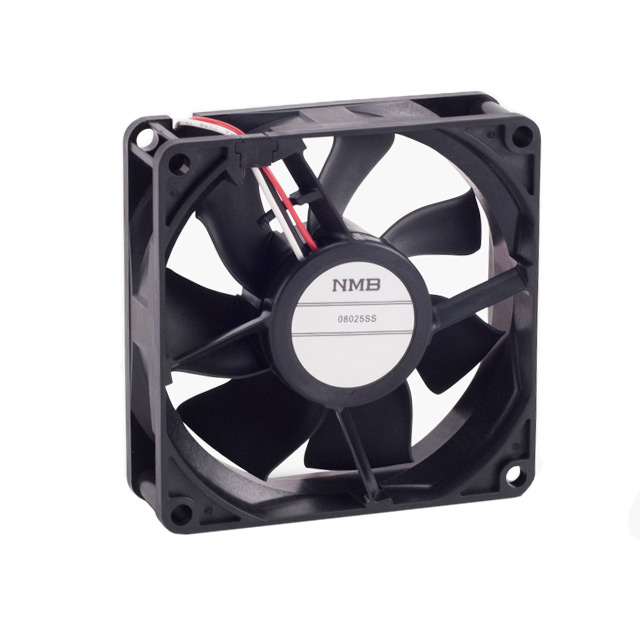

08025SS-24Q-AT-D0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 25 MM, SLEEVE BEARING, 54.74 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 80 MM, 25 MM, SLEEVE BEARING, 54.74 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	08025SS-24Q-AT-D0

Air Flow	1.53 mł/min
Air Flow	54.7 CFM
Bearing Type	Sleeve
Current Rating (Amps)	0.21 A
Fan Type	Tubeaxial
Features	Auto Restart, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	39.5 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	5.04 W
RPM	4100 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	67.3 Pa
Static Pressure	0.27 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	10 VDC
Width [y]	25 mm

Part	Width [y]	Features	Lifetime @ Temp.	Termination	Fan Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Voltage - Rated	Noise	Material - Blade	Static Pressure	Static Pressure	Power (Watts)	Material - Frame	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	RPM	Bearing Type	Voltage Range [Max]	Voltage Range [Min]
NMB TECHNOLOGIES 08025SS-24Q-AT-D0	25 mm	Auto Restart Speed Sensor (Tach)	50000 Hrs	3 Wire Leads	Tubeaxial	-10 °C	-10 °C	60 °C	60 °C	24 VDC	39.5 dB	Plastic	67.3 Pa	0.27 in H2O	5.04 W	Plastic	1.53 mł/min	54.7 CFM	80 mm	80 mm	0.21 A	4100 RPM	Sleeve	26.4 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Sleeve 54.7 CFM (1.53mł/min) 3 Wire Leads
