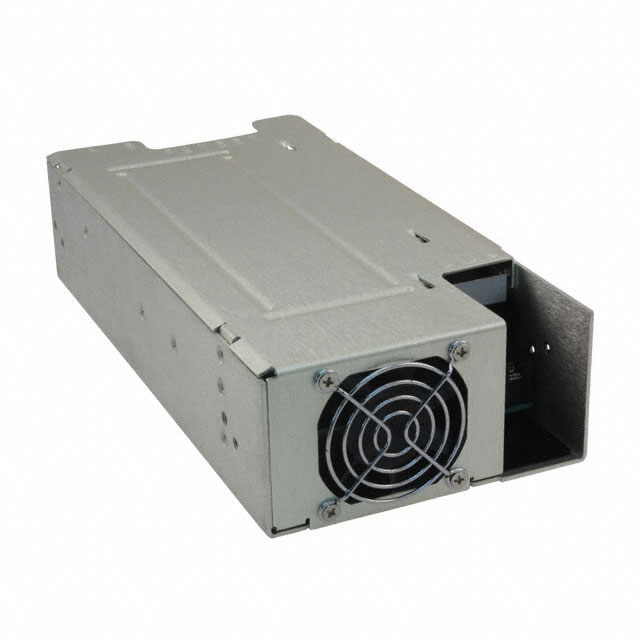

LPS355-CEF

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 350W

Search across all available documentation for this part.

Obsolete

ARTESYN / Advanced Energy

AC/DC CONVERTER 24V 350W

Technical Specifications

Parameters and characteristics for this part

Specification	LPS355-CEF

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	14.6 A
Efficiency	75 %
Features	Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	350 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	63.5 mm
Size / Dimension [z]	2.5 in
Type	Enclosed
Voltage - Output 1	24 V

Part	Efficiency	Power (Watts)	Minimum Load Required	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Voltage - Output 1	Number of Outputs	Approval Agency	Mounting Type
ARTESYN / Advanced Energy LPS355-CEF	75 %	350 W		Enclosed	228.6 mm	5 "	63.5 mm	9 in	2.5 in	127 mm	Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input	ITE (Commercial)	70 °C	0 °C	14.6 A	24 V	1	CB CE	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
