AX01F140VABBR300
ActiveJAE Electronics

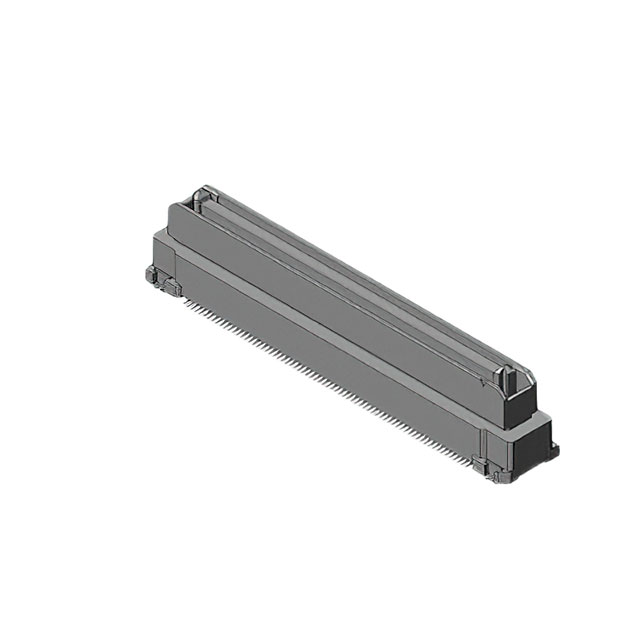

CONN FLOATING SIDE STR 140 POS
Deep-Dive with AI
Search across all available documentation for this part.
AX01F140VABBR300
ActiveJAE Electronics
CONN FLOATING SIDE STR 140 POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AX01F140VABBR300 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Mated Stacking Heights | 16 mm, 24 mm, 14 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 140 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
AX01F140 Series
| Part | Mated Stacking Heights | Features | Mounting Type | Number of Rows | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 14 mm 16 mm 24 mm | Board Guide Solder Retention | Surface Mount | 2 | 0.64 mm | 0.025 in | 140 | Gold | Center Strip Contacts Receptacle | 4 Áin | 0.1 Ám | ||
JAE Electronics | 20 mm 22 mm 30 mm | Board Guide Solder Retention | Surface Mount | 2 | 0.64 mm | 0.025 in | 140 | Gold | Center Strip Contacts Receptacle | 4 Áin | 0.1 Ám | 18.3 mm | 0.72 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 300 | $ 6.08 | |
Description
General part information
AX01F140 Series
140 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
