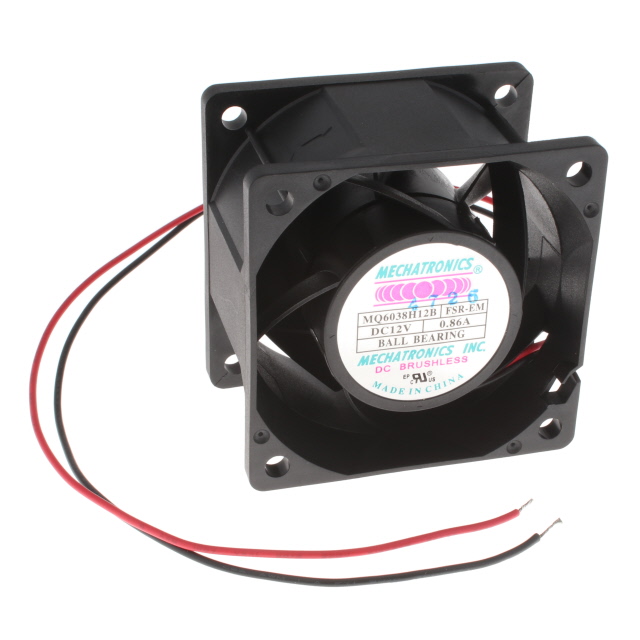

MQ6038H12B-FSR-EM

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 12VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 60X38MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MQ6038H12B-FSR-EM

Air Flow	57 CFM
Air Flow	1.6 mł/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.86 A
Fan Type	Tubeaxial
Ingress Protection	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	65 dB
RPM	10000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	356.2 Pa
Static Pressure	1.43 in H2O
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Weight	0.234 lb
Weight	106.14 g
Width [y]	38 mm

Part	Voltage - Rated	Size / Dimension [x]	Size / Dimension [y]	Fan Type	Approval Agency	Material - Blade	Current Rating (Amps)	RPM	Noise	Width [y]	Weight	Weight	Air Flow	Air Flow	Termination	Bearing Type	Static Pressure	Static Pressure	Ingress Protection
Mechatronics Bearing Group MQ6038E12B-FSR	12 VDC	60 mm	60 mm	Tubeaxial	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	1.6 A	11000 RPM	64 dB(A)	38 mm	0.234 lb	106.14 g	1.94 mł/min	69.2 CFM	2 Wire Leads	Ball	525.8 Pa	2.111 in H2O
Mechatronics Bearing Group MQ6038H12B-FSR-EM	12 VDC	60 mm	60 mm	Tubeaxial	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.86 A	10000 RPM	65 dB	38 mm	0.234 lb	106.14 g	1.6 mł/min	57 CFM	2 Wire Leads	Ball	356.2 Pa	1.43 in H2O	IP57 - Dust Protected Waterproof
Mechatronics Bearing Group MQ6038L24B-FSR-PC	24 VDC	60 mm	60 mm	Tubeaxial	CE cUL TUV UL	Polybutylene Terephthalate (PBT)	0.26 A	8000 RPM	53 dB	38 mm	0.234 lb	106.14 g	1.25 mł/min	44.5 CFM	2 Wire Leads	Ball	226.7 Pa	0.91 in H2O

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 60mm L x 60mm H Ball 57.0 CFM (1.60m³/min) 2 Wire Leads
