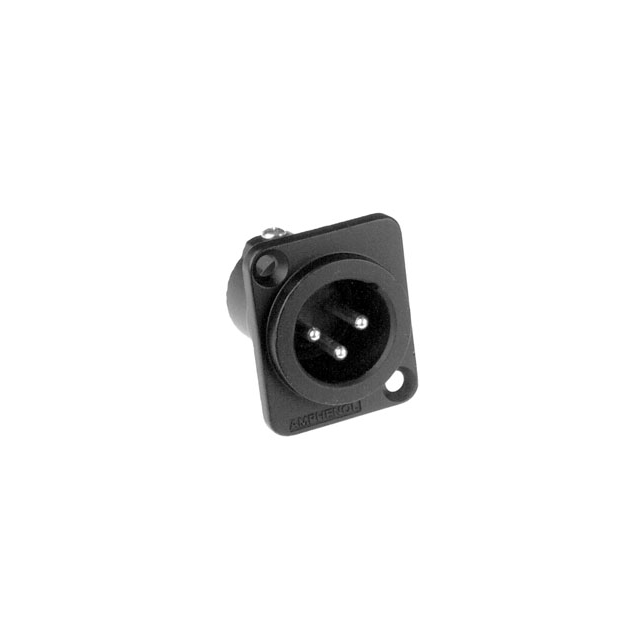

AC3MMDZB BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT MACH 3 PIN BLA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAudio XLR Catalog Datasheet

AC3MMDZB BULK

Active

Amphenol Sine Systems Corp

METAL PANEL MOUNT MACH 3 PIN BLA

Deep-Dive with AI

DocumentsAudio XLR Catalog Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AC3MMDZB BULK

Applications	Audio
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Brass
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

AC3M Series

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Orientation	Fastening Type	Features	Ingress Protection	Applications	Contact Material	Backshell Material, Plating	Primary Material	Shielding	Shell Size - Insert	Material Flammability Rating	Mounting Type	Current Rating (Amps)	Connector Type	Contact Finish - Mating	Shell Material	Insert Material	Mounting Feature
Amphenol Sine Systems Corp AC3MCP BULK	Black	-25 °C	75 ░C	Black	Keyed	Latch Holder	Backshell Cable Clamp	IP40	Audio	Phosphor Bronze	Polyphenylene Ether (PPE)	Plastic	Unshielded	XLR	UL94 V-0	Free Hanging (In-Line)	15 A	Male Pins Receptacle	Silver
Amphenol Sine Systems Corp AC3MMDZ BULK	Silver	-25 °C	75 ░C	Nickel	Keyed	Push-Pull	Ground	IP40	Audio	Brass		Metal	Shielded	XLR	UL94 V-0		15 A	Male Pins Receptacle	Silver	Zinc Die Cast	Glass Filled Nylon 6/6 Polyamide (PA66)	Flange
Amphenol Sine Systems Corp AC3MMDZB BULK	Black	-25 °C	75 ░C	Black	Keyed	Push-Pull		IP40	Audio	Brass		Metal	Unshielded	XLR	UL94 V-0		15 A	Male Pins Receptacle	Silver	Zinc Die Cast	Glass Filled Nylon 6/6 Polyamide (PA66)	Flange
Amphenol Sine Systems Corp AC3MBHL-AU-PRE
Amphenol Sine Systems Corp AC3MAV1-AU-PRE
Amphenol Sine Systems Corp AC3MB BULK	Black	-25 °C	75 ░C	Black	Keyed	Latch Holder	Backshell Cable Clamp	IP40	Audio	Phosphor Bronze	Polyphenylene Ether (PPE)	Metal	Unshielded	XLR	UL94 V-0	Free Hanging (In-Line)	15 A	Male Pins Receptacle	Silver	Zinc Die Cast
Amphenol Sine Systems Corp AC3MBV2-AU-PRE
Amphenol Sine Systems Corp AC3MMCP BULK	Black	-25 °C	75 ░C	Black	Keyed	Latch Holder	Backshell Cable Clamp	IP40	Audio	Brass	Polyphenylene Ether (PPE)	Plastic	Unshielded	XLR	UL94 V-0	Free Hanging (In-Line)	15 A	Male Pins Receptacle	Silver
Amphenol Sine Systems Corp AC3MBH1-AU-PRE

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	500	$ 3.98

Description

General part information

AC3M Series

3 Position Circular Connector Receptacle, Male Pins Solder Cup

Documents

Technical documentation and resources

Audio XLR Catalog

Datasheet
