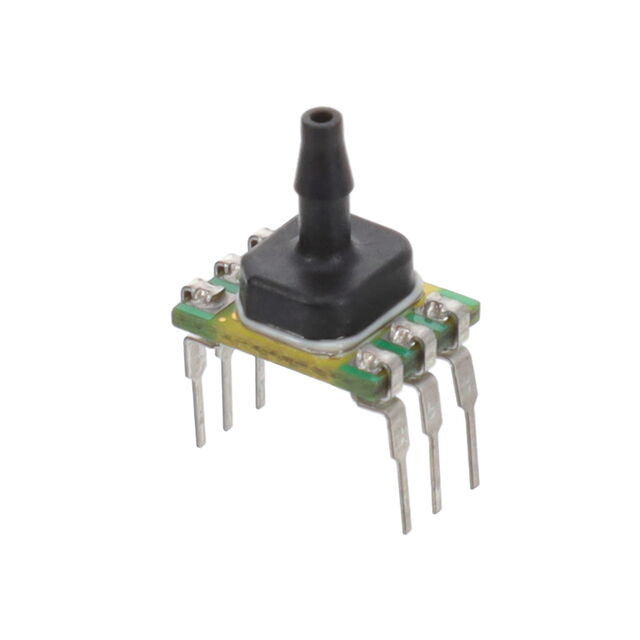

ABP2DANT001PGSA3XX

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.11" 14BIT 6DIP

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SENSOR 1PSIG 0.11" 14BIT 6DIP

Technical Specifications

Parameters and characteristics for this part

Specification	ABP2DANT001PGSA3XX

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	250 PSI
Maximum Pressure [Max]	1723.69 kPa
Mounting Type	Through Hole
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-40 °C
Output	14 b
Output Type	SPI
Package / Case	6-DIP Module, Top Port
Port Size	0.11 ", 2.74 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Supplier Device Package	6-DIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.8 V

Part	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Termination Style	Package / Case	Supplier Device Package	Features	Operating Pressure	Operating Pressure	Mounting Type	Port Size	Pressure Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Port Style	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Output
Honeywell Sensing and Productivity Solutions ABP2DANT001PGSA3XX	0.25 %	250 PSI	1723.69 kPa	PC Pin	6-DIP Module Top Port	6-DIP	Amplified Output Temperature Compensated	6.89 kPa	1 PSI	Through Hole	0.11 " 2.74 mm	Vented Gauge	3.6 V	1.8 V	Barbed	SPI	-40 °C	110 °C	14 b

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.11" (2.74mm) Tube 14 b 6-DIP Module, Top Port
