1.10.116.814/0000

Obsolete

RAFI USA

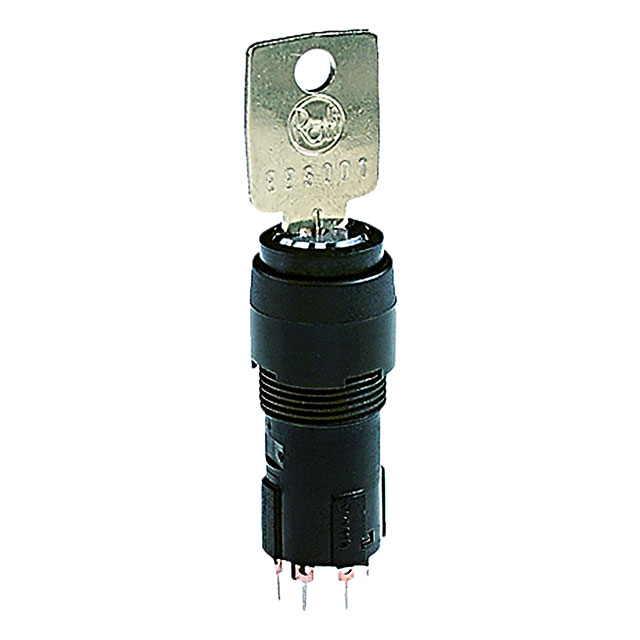

SWITCH KEYLK 4POS SP3T 100MA 35V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH KEYLK 4POS SP3T 100MA 35V

Technical Specifications

Parameters and characteristics for this part

Specification	1.10.116.814/0000

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	SP3T
Contact Finish	Gold Alloy
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Depth Behind Flange	39.5 mm
Electrical Life	50000 Cycles
Key Removable Positions	All
Number of Positions	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm
Switch Function	Off-On-On-On
Termination Style	Solder Lug
Voltage Rating - DC	35 V

Part	Switch Function	Number of Positions	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Contact Finish	Electrical Life	Contact Timing	Angle of Throw	Actuator Type	Key Removable Positions	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Termination Style	Circuit	Voltage Rating - DC
RAFI USA 1.10.116.814/0000	Off-On-On-On	4	16.2 mm	39.5 mm	Gold Alloy	50000 Cycles	Not Specified	90 °	Flat Key	All	70 °C	-25 °C	100 mA	Solder Lug	SP3T	35 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Keylock Switch 4 Position SP3T 100mA (AC/DC) 35 VAC 35 VDC Panel Mount
