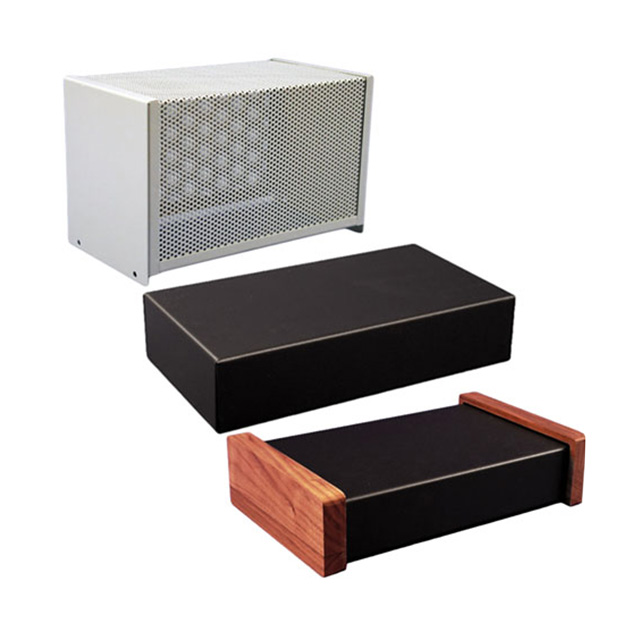

1451-22BK3

Active

Hammond Manufacturing

COVER FOR CHASSIS 12X8X5.2" BLK

Search across all available documentation for this part.

Active

Hammond Manufacturing

COVER FOR CHASSIS 12X8X5.2" BLK

Technical Specifications

Parameters and characteristics for this part

Specification	1451-22BK3

Color	Black
Features	Perforated
For Use With/Related Products	1444 Series, 1441
Material	Metal, Steel
Size / Dimension [x]	304.8 mm
Size / Dimension [x]	12 in
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm
Size / Dimension [z]	132.08 mm
Size / Dimension [z]	5.2 in
Type	Cover, Lid

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Color	For Use With/Related Products	Type	Features	Material	Size / Dimension [y]	Size / Dimension [z]
Hammond Manufacturing 1451-29	132.08 mm	12 "	10 in	5.2 in	254 mm	304.8 mm	Gray	1441 1444 Series	Cover Lid	Perforated	Metal Steel
Hammond Manufacturing 1451-16BK3		6 "	10 in	5.2 in	254 mm		Black	1441 1444 Series	Cover Lid	Perforated	Metal Steel	152.4 mm	132.08 mm
Hammond Manufacturing 1451-30BK3		10 in	17 in	5.2 in	431.8 mm		Black	1441 1444 Series	Cover Lid	Perforated	Metal Steel	254 mm	132.08 mm
Hammond Manufacturing 1451-14		5 "	9 in	5.2 in	228.6 mm		Gray	1441 1444 Series	Cover Lid	Perforated	Metal Steel	127 mm	132.08 mm
Hammond Manufacturing 1451-26		8 in	16 in	5.2 in	406.4 mm		Gray	1441 1444 Series	Cover Lid	Perforated	Metal Steel	203.2 mm	132.08 mm
Hammond Manufacturing 1451-22BK3		8 in	12 in	5.2 in	304.8 mm		Black	1441 1444 Series	Cover Lid	Perforated	Metal Steel	203.2 mm	132.08 mm
Hammond Manufacturing 1451-29BK3	132.08 mm	12 "	10 in	5.2 in	254 mm	304.8 mm	Black	1441 1444 Series	Cover Lid	Perforated	Metal Steel
Hammond Manufacturing 1451-10		4 "	8 "	5.2 in	203.2 mm		Gray	1441 1444 Series	Cover Lid	Perforated	Metal Steel	101.6 mm	132.08 mm
Hammond Manufacturing 1451-22		8 in	12 in	5.2 in	304.8 mm		Gray	1441 1444 Series	Cover Lid	Perforated	Metal Steel	203.2 mm	132.08 mm
Hammond Manufacturing 1451-10BK3		4 "	8 "	5.2 in	203.2 mm		Black	1441 1444 Series	Cover Lid	Perforated	Metal Steel	101.6 mm	132.08 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Metal, Steel Cover, Lid 12.000" L x 8.000" W x 5.200" H (304.80mm x 203.20mm x 132.08mm) Black

Technical documentation and resources

No documents available
