1.69.010.003/1300

Active

RAFI USA

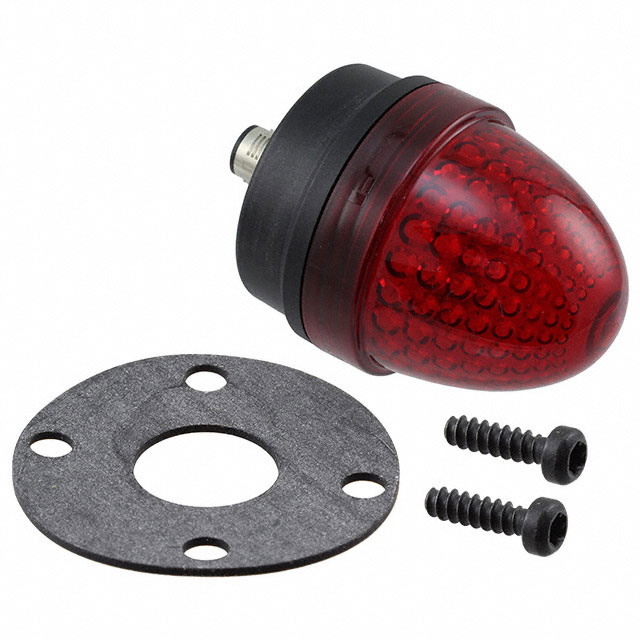

COMPLETE UNIT RED LED STEADY

Search across all available documentation for this part.

Active

RAFI USA

COMPLETE UNIT RED LED STEADY

Technical Specifications

Parameters and characteristics for this part

Specification	1.69.010.003/1300

Function - Lighting	Steady
Ingress Protection	IP65 - Dust Tight, Water Resistant
Light Color	Red
Number of Stacks	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Connector
Type	Complete Unit
Voltage - Supply	24 VAC
Weight	0.143 lb
Weight	64.86 g

Part	Type	Function - Lighting	Voltage - Supply	Termination Style	Number of Stacks	Ingress Protection	Weight	Weight	Light Color	Operating Temperature [Min]	Operating Temperature [Max]
RAFI USA 1.69.010.002/1000	Complete Unit	Steady	24 VAC	Spring Terminal	1	IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	White	-30 ░C	60 °C
RAFI USA 1.69.010.005/0000	Complete Unit	Steady	24 VAC	Connector	1	IP66/IP67			Green Red Yellow	-30 ░C	60 °C
RAFI USA 1.69.010.002/1300	Optical Element	Steady	24 VAC	Spring Terminal		IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	Red	-30 ░C	60 °C
RAFI USA 1.69.010.003/1300	Complete Unit	Steady	24 VAC	Connector	1	IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	Red	-30 ░C	60 °C
RAFI USA 1.69.010.003/1500	Complete Unit	Steady	24 VAC	Connector	1	IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	Green	-30 ░C	60 °C
RAFI USA 1.69.010.002/1500	Optical Element	Steady	24 VAC	Spring Terminal		IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	Green	-30 ░C	60 °C
RAFI USA 1.69.010.002/1400	Optical Element	Steady	24 VAC	Spring Terminal		IP65 - Dust Tight Water Resistant	0.143 lb	64.86 g	Yellow	-30 ░C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.28

General part information

Stack Light Complete Unit Red LED Connector

Technical documentation and resources

No documents available
