000-33275

Active

Amphenol RF

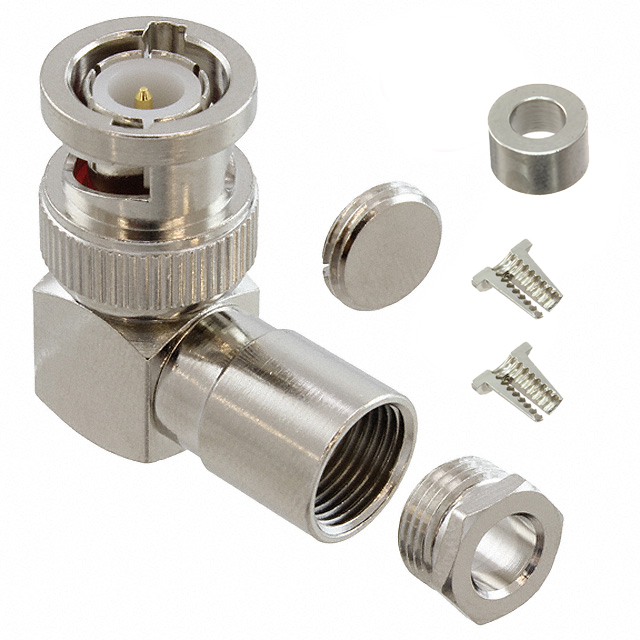

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP RA CABLE MOUNT PL SILVER/GOLD

Search across all available documentation for this part.

Active

Amphenol RF

CONN BNC 0HZ TO 4GHZ 50OHM CLAMP RA CABLE MOUNT PL SILVER/GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	000-33275

Body Finish	Nickel
Body Material	Brass
Cable Group	188, 188A, 316, LMR-100, M17/119-RG174, RG-174
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Clamp, 2 Clamp Cones, 1 Connector, 1 Insulator, 1 End Cap
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Center Contact Material	Housing Color	Fastening Type	Connector Style	Voltage Rating	Number of Ports	Body Finish	Shield Termination	Impedance	Body Material	Mating Cycles	Cable Group	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Mounting Type	Includes	Dielectric Material	Insertion Loss
Amphenol RF 000-33275	Brass	Silver	Bayonet Lock	BNC	500 V	1	Nickel	Clamp	50 Ohms	Brass	500	188 188A 316 LMR-100 M17/119-RG174 RG-174	Silver	4 GHz	-65 ░C	165 °C	Solder	Male Pin Plug	Free Hanging (In-Line) Right Angle	1 Clamp 1 Connector 1 End Cap 1 Insulator 2 Clamp Cones	Polytetrafluoroethylene (PTFE)	0.2 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Solder
