19620060442

Active

HARTING Technology Group

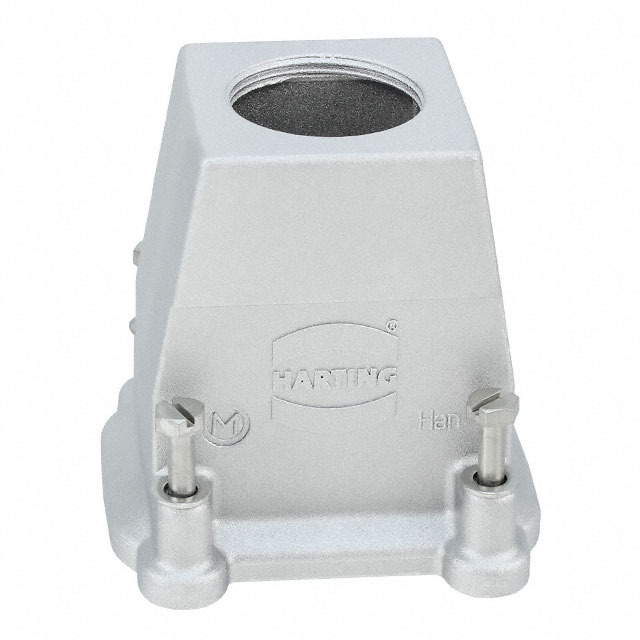

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; IP65; EMC; M32

Search across all available documentation for this part.

Active

HARTING Technology Group

ENCLOSURE FOR CONNECTORS: HDC; SIZE 6B; FOR CABLE; IP65; EMC; M32

Technical Specifications

Parameters and characteristics for this part

Specification	19620060442

Connector Type	Hood
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Screw Locks on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	6B
Size / Dimension [x]	2.874 in
Size / Dimension [x]	73 mm
Size / Dimension [y]	71 mm
Size / Dimension [y]	2.795 in
Size / Dimension [z]	75 mm
Size / Dimension [z]	2.953 in
Style	Top Entry
Thread Size	M32

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Style	Housing Material	Thread Size	Lock Location	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size	Ingress Protection
HARTING Technology Group 19620060541	125 °C	-40 °C	Hood	Side Entry	Aluminum Die Cast	M25	Screw Locks on Hood	75 mm	2.874 in	2.953 in	71 mm	2.795 in	73 mm	6B	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19620060442	125 °C	-40 °C	Hood	Top Entry	Aluminum Die Cast	M32	Screw Locks on Hood	75 mm	2.874 in	2.953 in	71 mm	2.795 in	73 mm	6B	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 6B IP65 - Dust Tight, Water Resistant
