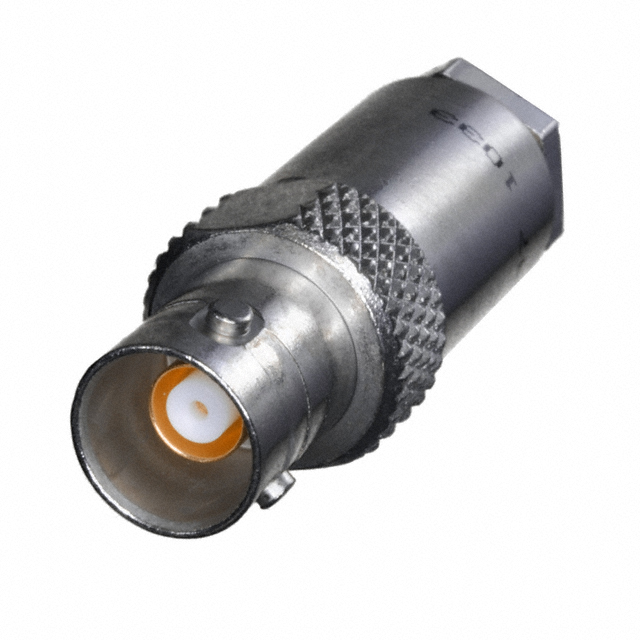

CJ70-47

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

CJ70-47

Active

Cinch Connectivity Solutions Trompeter

CONN TRB JACK STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CJ70-47

Body Finish	Nickel
Body Material	Brass
Cable Group	M17/176-00002
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	Twinaxial/Triaxial, TRB
Connector Type	Female Socket (Concentric), Jack
Contact Termination	Solder
Fastening Type	Bayonet Lock
Features	Three Lug
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	400 V

CJ70 Series

Part	Features	Connector Style	Impedance	Contact Termination	Fastening Type	Body Finish	Mounting Type	Body Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Ports	Housing Color	Cable Group	Center Contact Material	Voltage Rating	Shield Termination	Center Contact Plating	Connector Type	Frequency - Max [Max]	Mating Cycles	Includes
Cinch Connectivity Solutions Trompeter CJ70-29	Three Lug	TRB Twinaxial/Triaxial	Non-Constant	Solder	Bayonet Lock	Nickel	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	1	Silver	TWC-124-1A TWC-78-1	Beryllium Copper	400 V	Wrench Clamp	Gold	Female Socket (Concentric) Jack	500 MHz	500
Cinch Connectivity Solutions Trompeter CJ70C-201	Three Lug	TRB Twinaxial/Triaxial	Non-Constant	Crimp	Bayonet Lock	Nickel	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	1	Silver	M17/176-00002	Beryllium Copper	400 V	Crimp	Gold	Female Socket (Concentric) Jack	500 MHz	500	1 Connector 1 Heat Shrink 1 Nut 1 Strain Relief 1 Washer
Cinch Connectivity Solutions Trompeter CJ70-33	Three Lug	TRB Twinaxial/Triaxial	Non-Constant	Solder	Bayonet Lock	Nickel	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	1	Silver	TRC-75-1	Beryllium Copper	400 V	Wrench Clamp	Gold	Female Socket (Concentric) Jack	500 MHz	500
Cinch Connectivity Solutions Trompeter CJ70-9		TRB Twinaxial/Triaxial	Non-Constant	Solder	Bayonet Lock	Nickel	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	1	Silver	TWC-124-2 TWC-78-2	Beryllium Copper	400 V	Wrench Clamp	Gold	Female Socket (Concentric) Jack	500 MHz	500
Cinch Connectivity Solutions Trompeter CJ70-47	Three Lug	TRB Twinaxial/Triaxial	Non-Constant	Solder	Bayonet Lock	Nickel	Free Hanging (In-Line)	Brass	-65 ░C	165 °C	1	Silver	M17/176-00002	Beryllium Copper	400 V	Wrench Clamp	Gold	Female Socket (Concentric) Jack	500 MHz	500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.06
		10	$ 35.68
		25	$ 32.39
		50	$ 30.59

Description

General part information

CJ70 Series

TRB, Twinaxial/Triaxial Connector Jack, Female Socket (Concentric) Non-Constant Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
