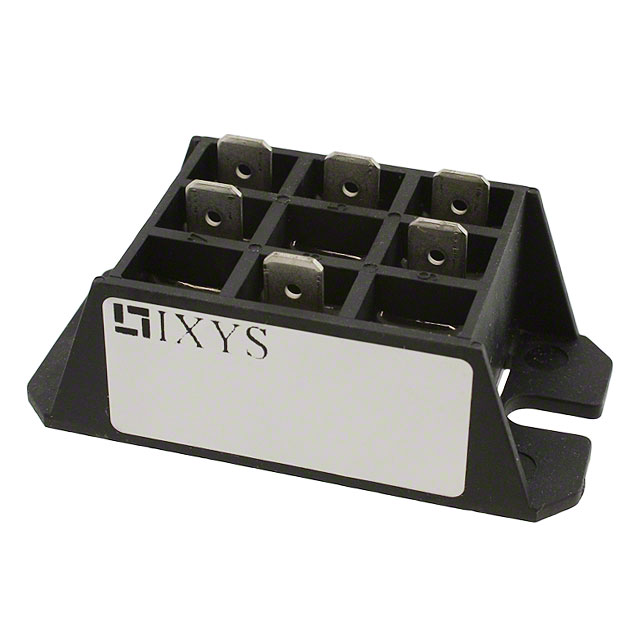

VHF36-16IO5

Obsolete

IXYS

RECT BRIDGE 1PH 1600V FO-F-A

Search across all available documentation for this part.

Obsolete

IXYS

RECT BRIDGE 1PH 1600V FO-F-A

Technical Specifications

Parameters and characteristics for this part

Specification	VHF36-16IO5

Current - Gate Trigger (Igt) (Max) [Max]	65 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	350 A, 320 A
Current - On State (It (AV)) (Max) [Max]	36 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes [custom]	2
Number of SCRs, Diodes [custom]	2
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	FO-F-A
Structure	Bridge, Single Phase - SCRs/Diodes (Layout 1)
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V
Voltage - Off State	1.6 kV

Part	Package / Case	Current - Hold (Ih) (Max) [Max]	Current - Gate Trigger (Igt) (Max) [Max]	Structure	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (AV)) (Max) [Max]	Mounting Type	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max) [Max]	Voltage - Off State	Number of SCRs, Diodes [custom]	Number of SCRs, Diodes [custom]
IXYS VHF36-16IO5	FO-F-A	100 mA	65 mA	Bridge Single Phase - SCRs/Diodes (Layout 1)	-40 °C	125 ¯C	36 A	Chassis Mount	320 A 350 A	1 V	1.6 kV	2	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SCR Module 1.6 kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount FO-F-A
