4410.0101
ActiveSCHURTER Inc.

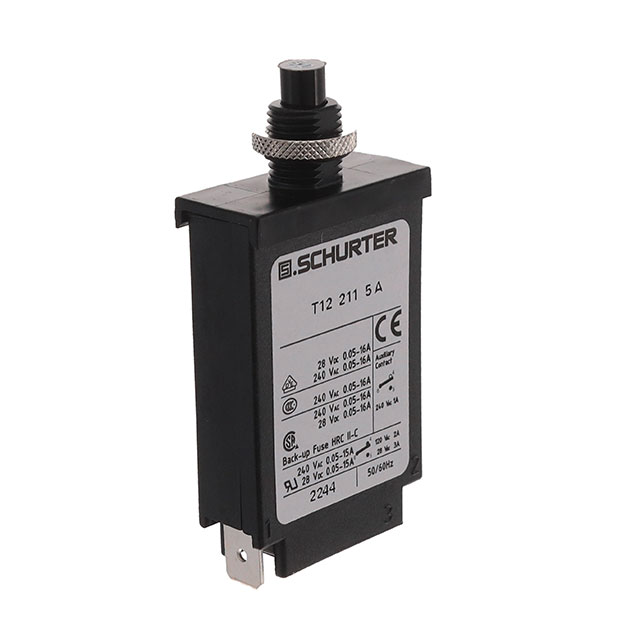

CIRCUIT BREAKER; 240VAC; 28VDC; 5A; SPST; POLES: 1; SCREW; T12-211
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
4410.0101
ActiveSCHURTER Inc.
CIRCUIT BREAKER; 240VAC; 28VDC; 5A; SPST; POLES: 1; SCREW; T12-211
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 4410.0101 |
|---|---|
| Actuator Type | Push to Reset |
| Approval Agency | UL1077, IEC 60934, GB 17701, CSA C22.2 No 235, EN 60934 |
| Breaker Type | Thermal |
| Current Rating (Amps) | 5 A |
| Number of Poles | 1 |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
t12-211 Series
Circuit Breaker Thermal 5A 240 V AC 28 V DC Push to Reset Panel Mount
