0367720003

Active

Molex

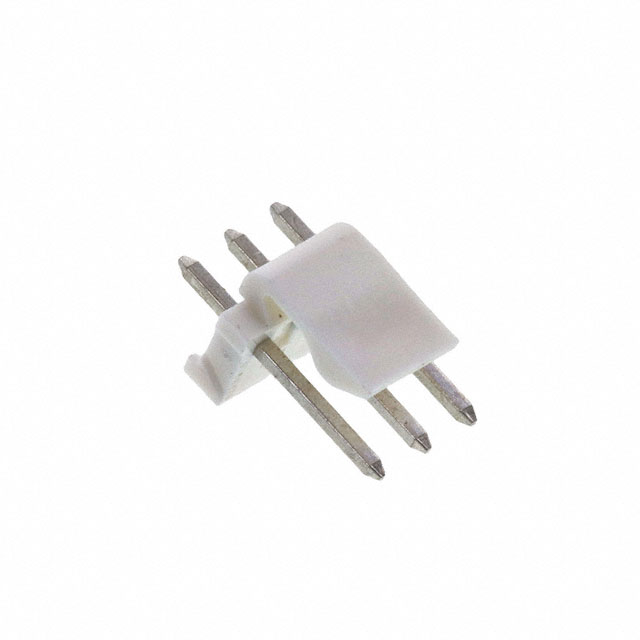

CONN HEADER VERT 3POS 3.96MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0367720003

Active

Molex

CONN HEADER VERT 3POS 3.96MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0367720003

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	11.43 mm
Contact Length - Mating	0.45 in
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Friction Lock
Insulation Color	Natural
Insulation Height	0.446 in
Insulation Height	11.33 mm
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	0.75 in
Overall Contact Length	19.05 mm
Pitch - Mating	0.156 in
Pitch - Mating	3.96 mm
Shrouding	Shrouded - 1 Wall
Style	Board to Cable/Wire
Termination	Solder

036772 Series

Part	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Number of Rows	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Shrouding	Overall Contact Length	Overall Contact Length	Insulation Color	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Number of Positions	Contact Type	Termination	Connector Type	Insulation Height	Insulation Height	Contact Shape	Mounting Type
Molex 0367720007	0.156 in	3.96 mm	2.54 çm	100 çin	Board to Cable/Wire	1	Polyester Glass Filled	2.54 µm	100 µin	Friction Lock	Shrouded - 1 Wall	0.75 in	19.05 mm	Natural	4.32 mm	0.17 in	UL94 V-0	Tin	All	11.43 mm	0.45 in	7	Male Pin	Solder	Header	0.446 in	11.33 mm	Square	Through Hole
Molex 0367720006	0.156 in	3.96 mm	2.54 çm	100 çin	Board to Cable/Wire	1	Polyester Glass Filled	2.54 µm	100 µin	Friction Lock	Shrouded - 1 Wall	0.75 in	19.05 mm	Natural	4.32 mm	0.17 in	UL94 V-0	Tin	All	11.43 mm	0.45 in	6	Male Pin	Solder	Header	0.446 in	11.33 mm	Square	Through Hole
Molex 0367720010	0.156 in	3.96 mm	2.54 çm	100 çin	Board to Cable/Wire	1	Polyester Glass Filled	2.54 µm	100 µin	Friction Lock	Shrouded - 1 Wall	0.75 in	19.05 mm	Natural	4.32 mm	0.17 in	UL94 V-0	Tin	All	11.43 mm	0.45 in	10	Male Pin	Solder	Header	0.446 in	11.33 mm	Square	Through Hole
Molex 0367720003	0.156 in	3.96 mm	2.54 çm	100 çin	Board to Cable/Wire	1	Polyester Glass Filled	2.54 µm	100 µin	Friction Lock	Shrouded - 1 Wall	0.75 in	19.05 mm	Natural	4.32 mm	0.17 in	UL94 V-0	Tin	All	11.43 mm	0.45 in		Male Pin	Solder	Header	0.446 in	11.33 mm	Square	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 0.29
		10	$ 0.23
		80	$ 0.17
		1000	$ 0.14

Description

General part information

036772 Series

Connector Header Through Hole 3 position 0.156" (3.96mm)

Documents

Technical documentation and resources
