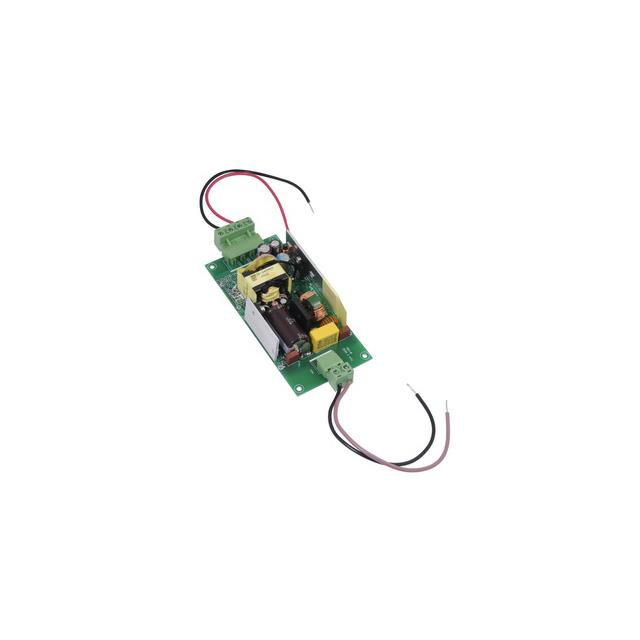

AMEOC30-12DMAZ
Activeaimtec
AC/DC CONVERTER +/-12V 30W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMEOC30-12DMAZ
Activeaimtec
AC/DC CONVERTER +/-12V 30W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMEOC30-12DMAZ |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 1.25 A |
| Current - Output 2 | 1.25 A |
| Efficiency | 84 % |
| Features | Universal Input |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 30 W |
| Size / Dimension [x] | 124.5 mm |
| Size / Dimension [x] | 4.9 in |
| Size / Dimension [y] | 2.32 in |
| Size / Dimension [y] | 58.9 mm |
| Size / Dimension [z] | 0.98 in |
| Size / Dimension [z] | 24.9 mm |
| Standard Number | 60950-1, 60601-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 90 VAC, 130 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 44.12 | |
| 5 | $ 42.83 | |||
| 10 | $ 42.41 | |||
| 25 | $ 41.58 | |||
| 50 | $ 40.76 | |||
| 100 | $ 38.82 | |||
| 250 | $ 37.08 | |||
| 500 | $ 35.59 | |||
Description
General part information
AMEOC30 Series
Open Frame AC DC Converters 2 Output 12V -12V 90 ~ 264 VAC, 130 ~ 370 VDC Input
