WP132XPGD

Active

Kingbright

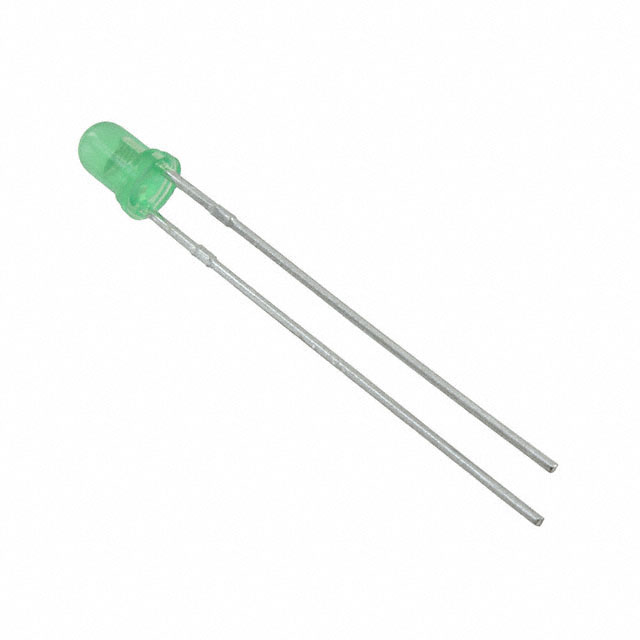

T-1 SINGLE COLOR LED, PURE GREEN, 3MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

WP132XPGD

Active

Kingbright

T-1 SINGLE COLOR LED, PURE GREEN, 3MM, ROHS COMPLIANT PACKAGE-2

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WP132XPGD

Color	Green
Configuration	Standard
Current - Test	20 mA
Height (Max) [Max] [z]	5.2 mm
Lens Color	Green
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Transparency	Diffused
Millicandela Rating	10 mcd
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension [diameter]	3 mm
Supplier Device Package	T-1
Viewing Angle	60 °
Voltage - Forward (Vf) (Typ)	2.25 V
Wavelength - Dominant	557 nm
Wavelength - Peak	557 nm

WP132 Series

Part	Size / Dimension [diameter]	Lens Style	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Dominant	Lens Color	Millicandela Rating	Lens Size	Lens Size	Wavelength - Peak	Viewing Angle	Package / Case	Current - Test	Mounting Type	Supplier Device Package	Height (Max) [Max] [z]	Color	Lens Transparency
Kingbright WP132XGD	3 mm	Round with Domed Top	2.2 V	Standard	568 nm	Green	25 mcd	3 mm	T-1	565 nm	60 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Green	Diffused
Kingbright WP132XIT	3 mm	Round with Domed Top	2 V	Standard	617 nm	Red	20 mcd	3 mm	T-1	627 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Red	Clear
Kingbright WP132XGT	3 mm	Round with Domed Top	2.2 V	Standard	568 nm	Green	40 mcd	3 mm	T-1	565 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Green	Clear
Kingbright WP132XNC	3 mm	Round with Domed Top	2.05 V	Standard	602 nm	Colorless	20 mcd	3 mm	T-1	607 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm		Clear
Kingbright WP132XGC	3 mm	Round with Domed Top	2.2 V	Standard	568 nm	Colorless	40 mcd	3 mm	T-1	565 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Green	Clear
Kingbright WP132XYD	3 mm	Round with Domed Top	2.1 V	Standard	588 nm	Yellow	15 mcd	3 mm	T-1	590 nm	60 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Yellow	Diffused
Kingbright WP132XPGD	3 mm	Round with Domed Top	2.25 V	Standard	557 nm	Green	10 mcd	3 mm	T-1	557 nm	60 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Green	Diffused
Kingbright WP132XND	3 mm	Round with Domed Top	2.05 V	Standard	602 nm	Orange	16 mcd	3 mm	T-1	607 nm	60 °	Radial	20 mA	Through Hole	T-1	5.2 mm		Diffused
Kingbright WP132XYC	3 mm	Round with Domed Top	2.1 V	Standard	588 nm	Colorless	20 mcd	3 mm	T-1	590 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Yellow	Clear
Kingbright WP132XYT	3 mm	Round with Domed Top	2.1 V	Standard	588 nm	Yellow	20 mcd	3 mm	T-1	590 nm	50 °	Radial	20 mA	Through Hole	T-1	5.2 mm	Yellow	Clear
